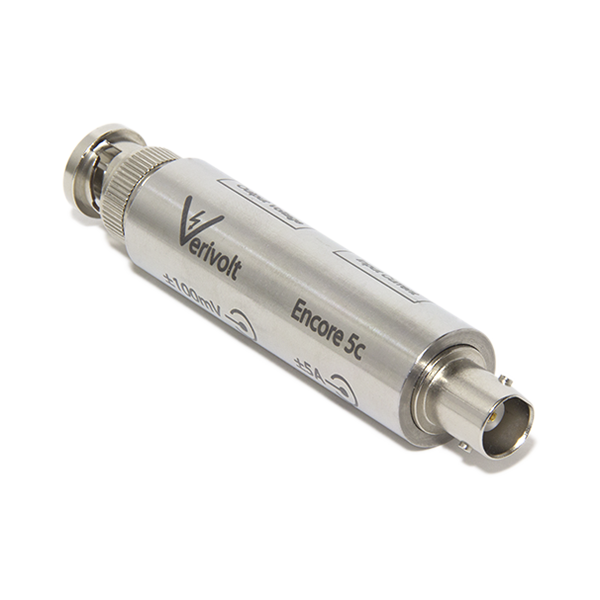

Encore
Features±100mv Rms Output Voltage For A ±5a Rms Input Current
Dc To 40khz Range Of Operation. Customizable 2nd Order Output Low-Pass Filter
Easyconnect Interfacing Modules Simplify And Reduce Cost Of High Channel Count Setups
Enables High Channel Count And Matches Dynamic Range Of Ni-9205 Crio Digitizer
Industrial Grade Casing
Withstands Surges Of Up To 5x Rated Current For 10 Seconds
Documentation
Verivolt Encore is designed to perform a 4 wire current measurement. Particular attention was paid on providing a solution that minimizes cost and improves overall performance on distributed systems such as substations, building monitoring, power distribution systems, etc. The Encore C series covers the ranges of ±1mA, ±2mA, ±3mA, ±5mA, ±100mA, ±200mA, ±300mA, ±500mA, ±1A, ±2A, ±3A, ±4A and ±5A, with bandwidth of up to 50MHz and 0.1% accuracy.
