IsoBlock AT

Accelerometer Isolator
  • Icon 1,200v Sustained And 5,000v Peak Isolation
  • Icon 1hz To 100khz Bandwidth
  • Icon Din Rail Fixturing For Fast Setup
  • Icon Drop In Accelerometer Powering And Isolation To Any Daq
  • Icon Powering And Measuring Of Standard Accelerometers
  • Icon Simple Setup
  • Icon Three-Way Galvanic Isolation

Contact our Sales team to learn about this

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

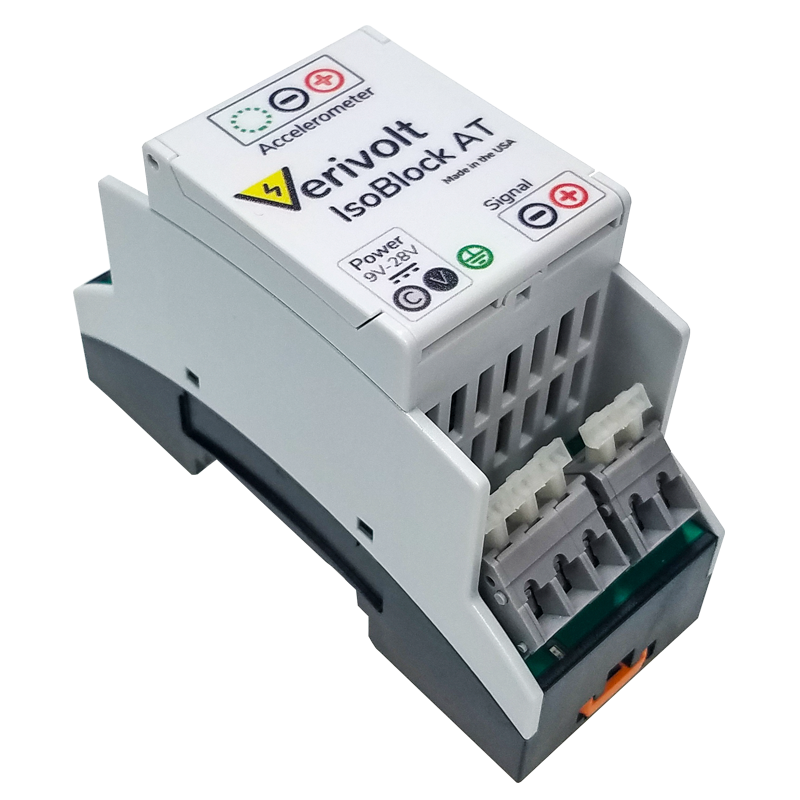

The IsoBlock AT-1c is a high-performance isolated amplifier for standard Accelerometers. It powers the accelerometer units while translates the output signal into a low impedance isolated output voltage signal. Each IsoBlock AT unit hosts an isolated channel that can be connected to an accelerometer and is isolated to 5kV (1min) or 1.5kV indefinitely.  The output signal from the IsoBlock unit is referenced in respect to the ground channel of the user’s data acquisition system.


Three-Way Galvanic Isolation

The IsoBlock V modules provide a three-way galvanic isolation:

    Channel to Channel
    Primary to Secondary
    Signal to Power

This galvanic barrier prevents unwanted currents from flowing along the circuit and adds a level of protection as well as allows to operate grounds with different potentials.


100% Electronic Technology

The use of advanced analog design and advanced materials makes devices more compact, reliable and cost effective. Our designs reduce the footprint and impact in the environment as more friendly materials are used.


Surge Protection

The devices are designed to survive and protect other equipment against harmful voltage surges. These depend on the duration but can go as high as 20x the rated measurement range for up to 5 microseconds. The devices will cap the outputs to a maximum slightly higher than the output range, saturate and not go over range therefore protecting any connected DAQ.


Optional Filtering

Verivolt's IsoBlock devices have a filtering stage that can be configured during manufacturing and serve as an anti-aliasing filter. This filter is a 3rd order filter and needs to be determined during the ordering.
