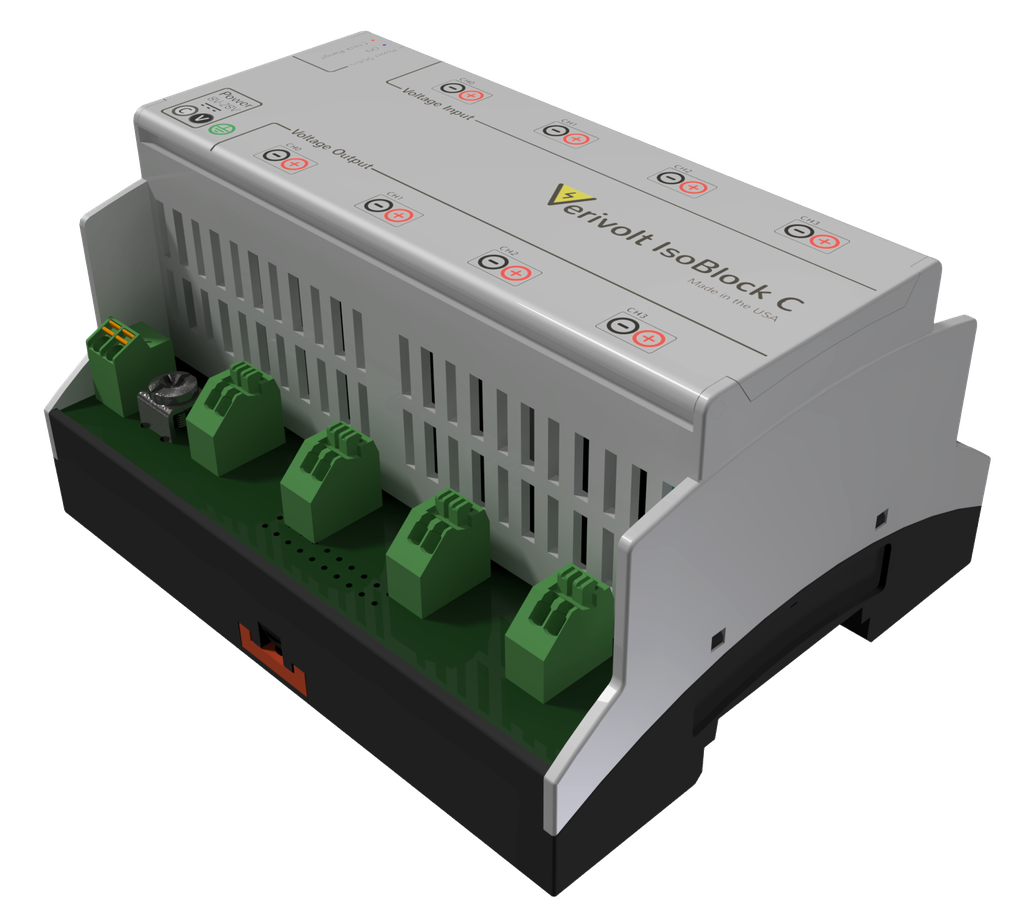

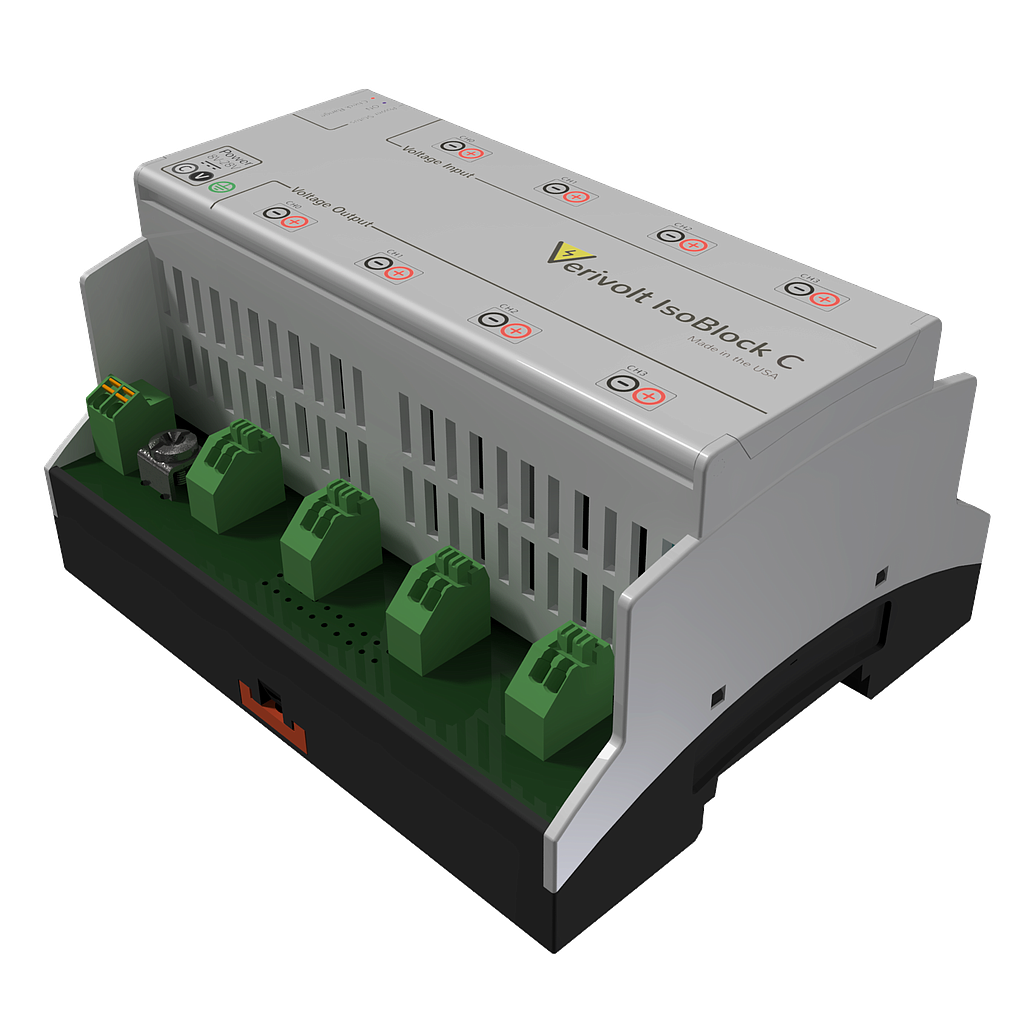

IsoBlock C-4c
Galvanic channel to channel isolation
Common Mode Voltage: up to 1200VDC (~1000 channels for fuel cells, 250+ channels for Li-ion batteries)
1,200V sustained and 5,000V peak isolation
DC to 100kHz Bandwidth (1MHz upon request)
Compact construction (less than 4 inches long for 4 channels)
Simple setup
Drop in channel to channel isolation to any DAQ
Spring cage connectivity and DIN rail fixturing for fast setup
Designed for Battery or Fuel Cell monitoring
This item is now IsoBlock V
The IsoBlock module was designed to provide low-cost and high-quality isolated differential voltage measurements along a chain of fuel-cells or batteries. Our innovative modular architecture and isolation techniques allow users to connect multiple IsoBlock modules together serially, facilitating the monitoring of long fuel-cell or battery chains.
Each IsoBlock unit hosts eight separate isolated channels, each of which can be connected to separate measurement sources while providing a range of functional coverage up to 20V. The input of each specific IsoBlock channel has its own isolated reference, and can be configured to suit user needs. All processed signals output from the IsoBlock unit are referenced in respect to the ground channel of the user’s data acquisition system.
Verivolt designs its IsoBlock modules with consideration for user flexibility, exceptionally high channel-density and low power consumption.
