Encore
In Stock- Withstands surges of up to 5x rated current for 10 seconds
- Enables high channel count and matches dynamic range of NI-9205 cRIO digitizer
- ±100mV RMS output voltage for a ±5A RMS input current
- DC to 40kHz range of operation. Customizable 2nd order output low-pass filter
- Industrial grade casing
- EasyConnect interfacing modules simplify and reduce cost of high channel count setups
Output Voltage:
100mV

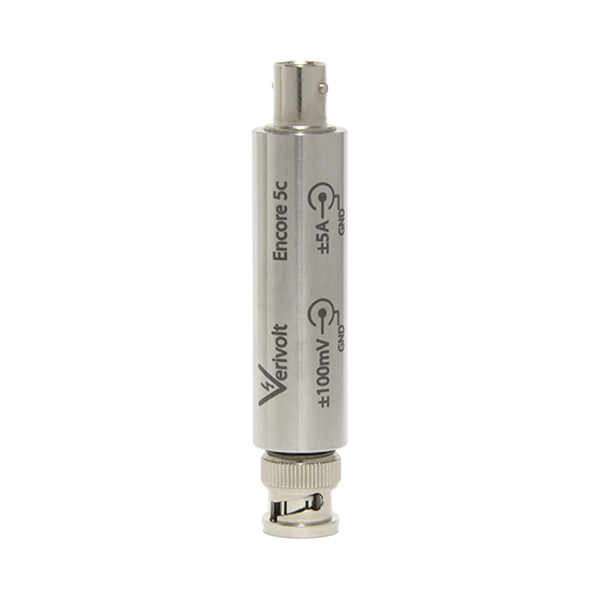

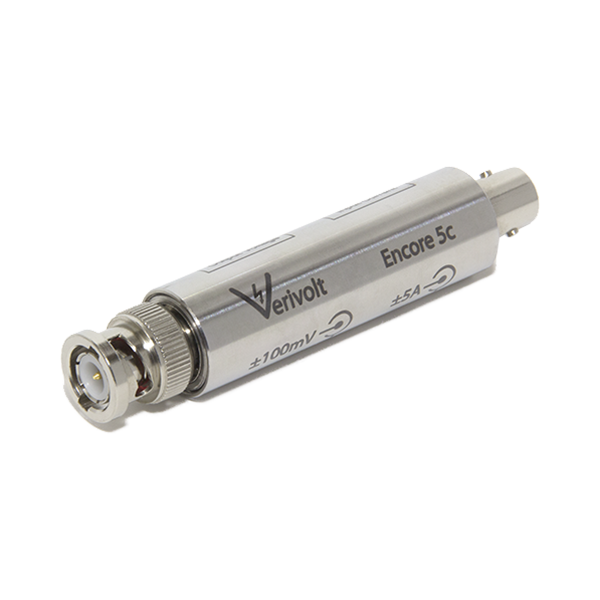

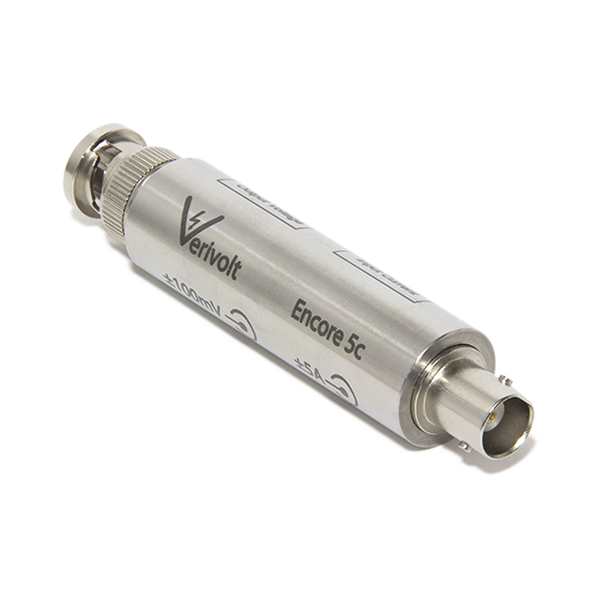

Verivolt Encore is designed to perform a 4 wire current measurement. Particular attention was paid on providing a solution that minimizes cost and improves overall performance on distributed systems such as substations, building monitoring, power distribution systems, etc. The Encore C series covers the ranges of ±1mA, ±2mA, ±3mA, ±5mA, ±100mA, ±200mA, ±300mA, ±500mA, ±1A, ±2A, ±3A, ±4A and ±5A, with bandwidth of up to 50MHz and 0.1% accuracy.
