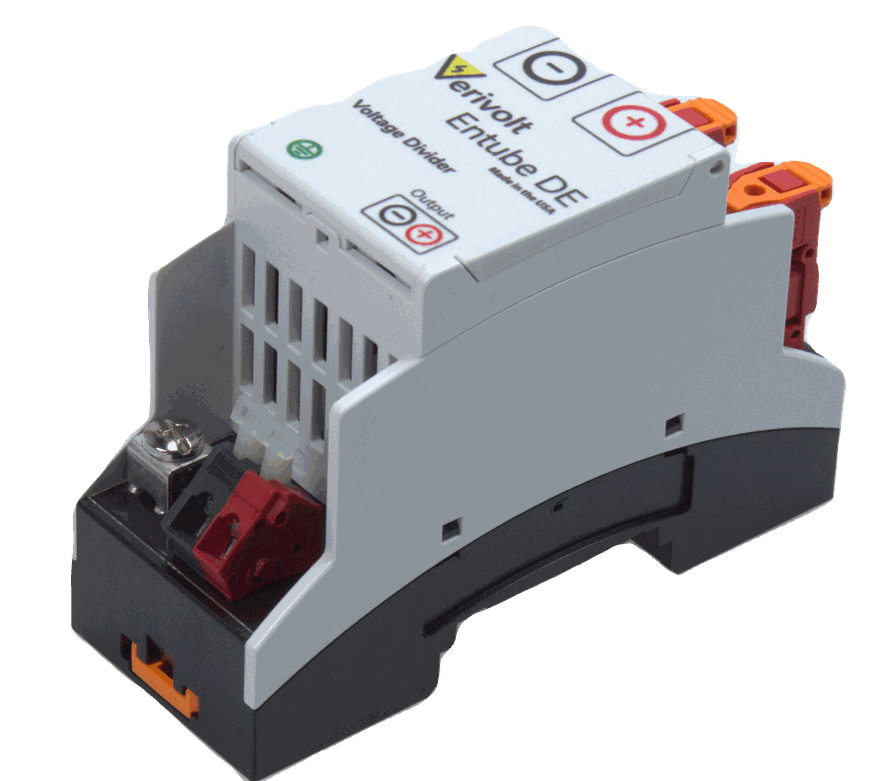

Entube DE
FeaturesInput range from 150VAC to 1000VAC
±5v Or ±10v Output Dynamic Range (Differential Plus Common Mode)
4 channel module
Dc To 25khz Frequency Spectrum Of Operation
Designed For Interfacing With Differential Input DAQs
Industrial Grade Casing, 100% Electronic Technology
Sensor Works Without The Need For A Power Supply
Documentation
Product Details
The Entube-de series is a family of voltage transducers designed for high quality differential measurements in a very compact form factor, and without need for power supplies. This series covers the ranges of ±50V to ±1500V with up to 50kHz bandwidth and up to 0.2% of signal accuracy.
The module outputs all line-to-line and line-to-ground signal pairs. Delta or Wye measurements can be made depending on the input configuration of the digitizer being used (NRSE or Differential).
Differential Divider
The Entube-de sensor operates as a differential divider RC-network with an anti-aliasing filter on its output. It generates a ±5V or ±10V scaled down version of the difference between the two input voltages, which can then be processed by a computer-based measurement system.
Ultra-compact form factor
The Entube-de is part of Verivolt’s sensing platform, which is aimed at allowing users to laid out multiple distributed sensors with a minimum of cabling required and no power supplies. This platform together with the Entube-de ultra-compact form factor, allows for very high channel densities, while delivering high performance for a low cost.
