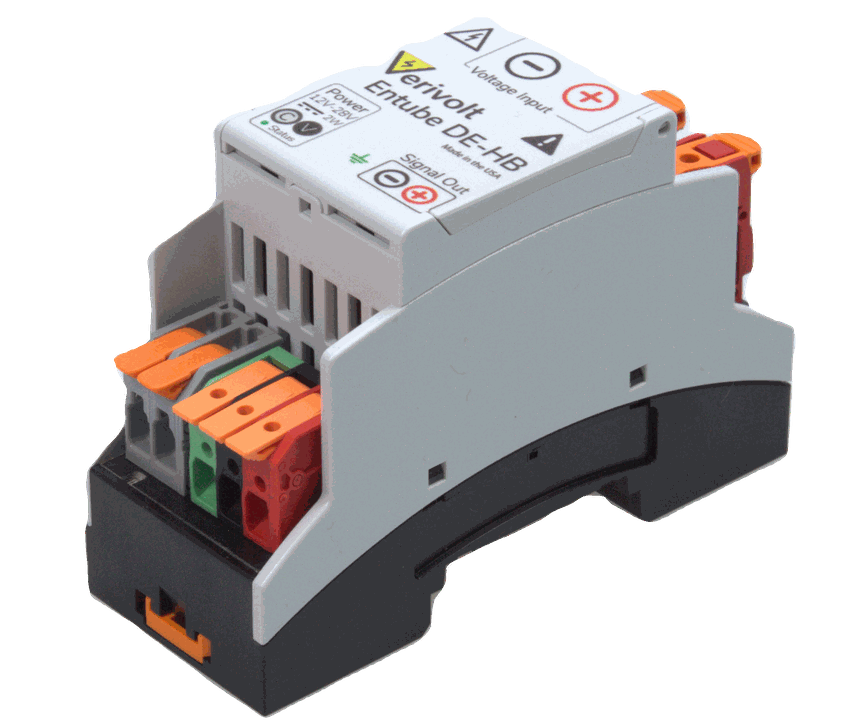

Entube DE-HB

In Stock
High Voltage Differential Probe

  • Up to ±2000V input dynamic range on each terminal (line-to-line and line-to-ground)
  • ±1V to ±10V output dynamic range (differential plus common mode)
  • DC to 20MHz frequency spectrum of operation
  • 5000V withstanding surge voltage for 10 seconds
  • Designed for interfacing with differential input DAQs
  • Industrial grade casing, 100% electronic technology


Price and options

380.00 380.00 380.0 USD


  • Input Voltage
  • Output Type
  • Output Voltage
Availability up to 90

This combination does not exist.

Add to Cart

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

The Entube-DE-HB series was designed to enable measurement of fast high voltage signals in industrial and research environments. The output of the Entube-DE-HB is a linearly scaled down version of the voltage difference between its two input terminals. This output can then be processed by a computer-based measurement system. The Entube-DE-HB series covers multiple input dynamic ranges with a 20MHz bandwidth, and 0.2% accuracy.

In addition to multiple dynamic ranges, the Entube-DE-HB can be ordered to have a single-ended (-S) or a differential-pair (-D) output. The single-ended version has a BNC connector at the output and can be selected to be ±5V or ±1V. The differential-pair version has a clamp-cage connector at the output and can be selected to be ±10V or ±1V. In both cases, the higher range is intended to be used with a high input impedance digitizer with a standard ±5 or ±10V dynamic range. The ±1V output range is intended to drive a 50 Ohm load (Single-Ended version) or a 100 Ohm load (Differential version) in applications where signal reflections must be avoided.
