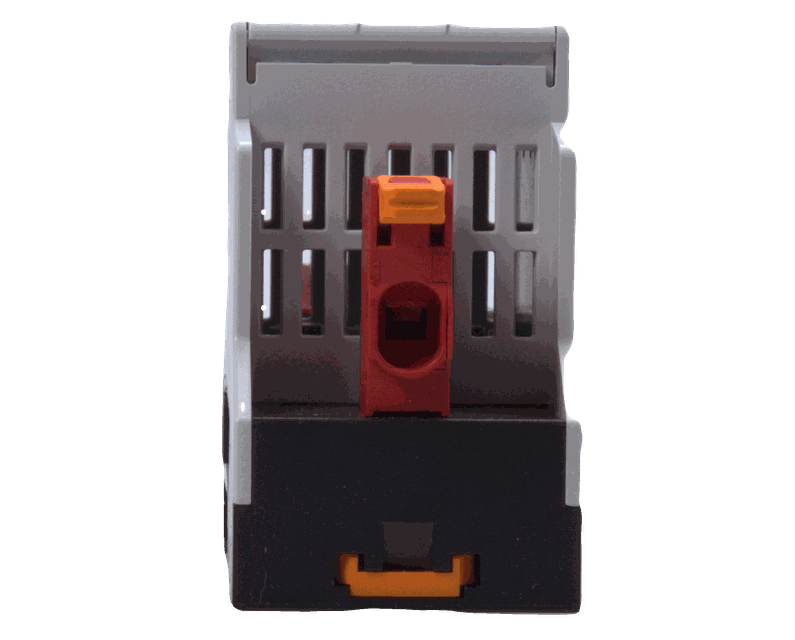

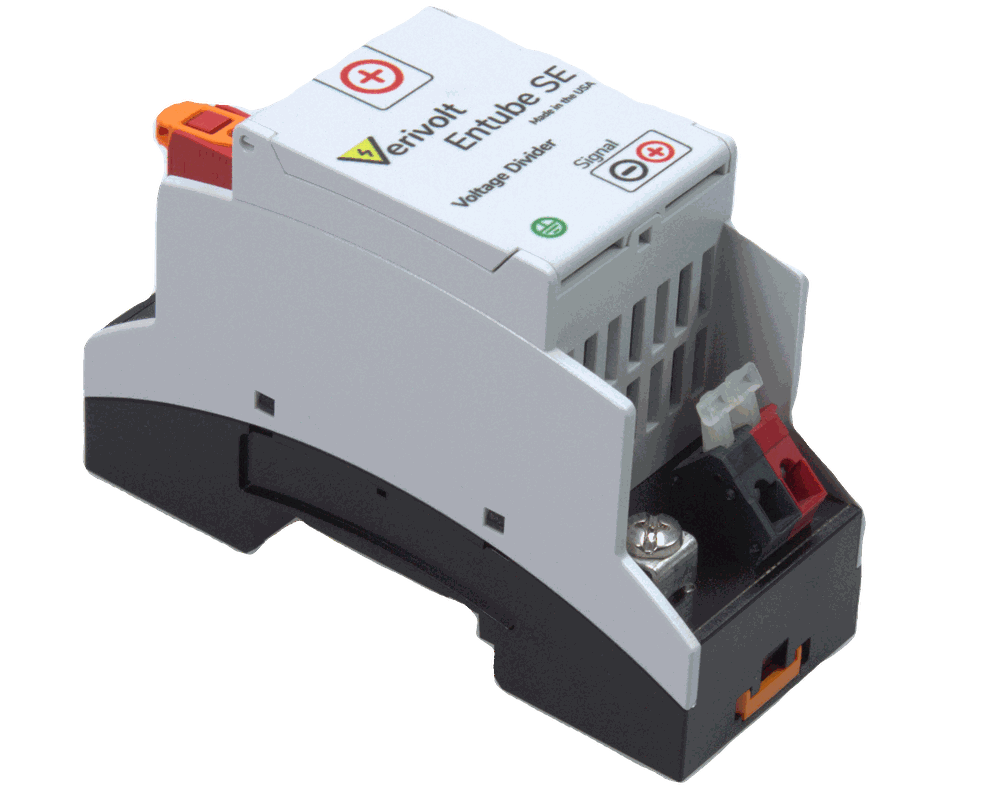

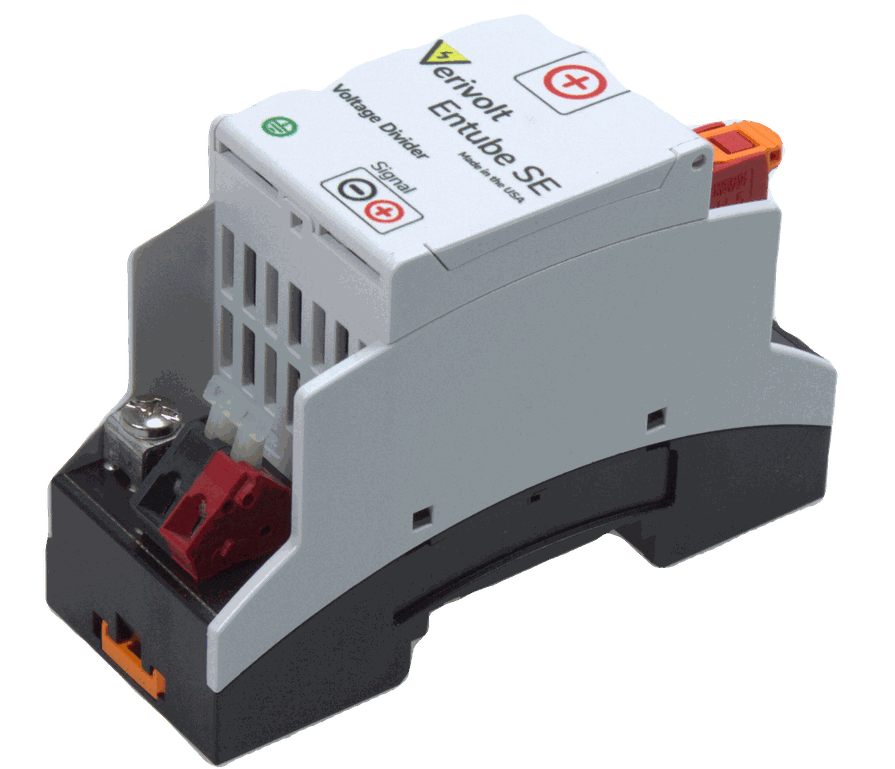

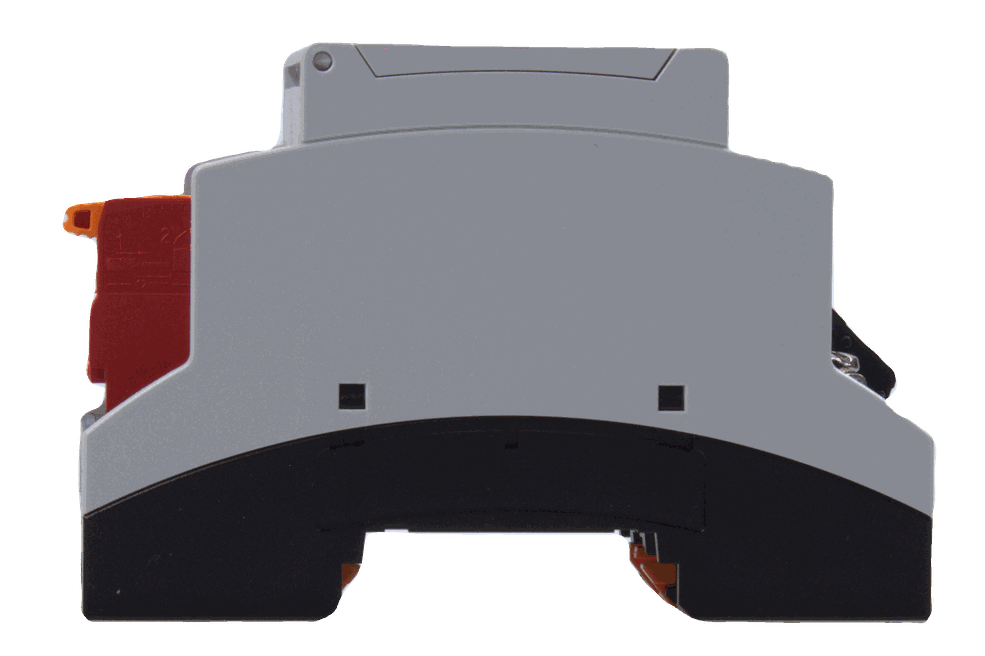

Entube SE

Voltage Divider with an Optional Anti-Aliasing Filter at Output
  • Icon ±10v Or ±5v Signal Output For Best Connectivity
  • Icon Compact Construction
  • Icon Drop In Replacement To Other Voltage Dividers
  • Icon Simple Setup
  • Icon Spring Cage Connectivity
Need help choosing the right option?
Icon Connect with our sales engineer
Select options
  • Input Voltage
  • Output Voltage
Part Number

In Stock

180.00 180.00 180.0 USD


This combination does not exist.

Add to Cart shop

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days




The Entube SE series is a family of voltage transducers designed for high quality single ended measurements in a very compact form factor, and without need for power supplies. This series covers the ranges of ±50V to ±2000V with up to 50kHz bandwidth and up to 0.2% of signal accuracy.

Plug and Play Usability

The Entube SE provides ease-of-use and can be mounted anywhere between the signal source and the data acquisition system. A female screw on the low voltage side of the sensor allows for DIN rail mounting and serves as a safety ground.

Ultra-Compact Form

The Entube SE is part of Verivolt’s sensing platform, which is aimed at allowing users to laid out multiple distributed sensors with a minimum of cabling required and no power supplies. This platform together with the Entube-de ultra-compact form factor, allows for very high channel densities, while delivering high performance for a low cost.

High Input Impedance

Have a high input impedance to reduce the unwanted effects and increases device safety. For an accurate determination of the impedance, please refer to the specsheet as the input impedance is dependent on the input range of the device.
