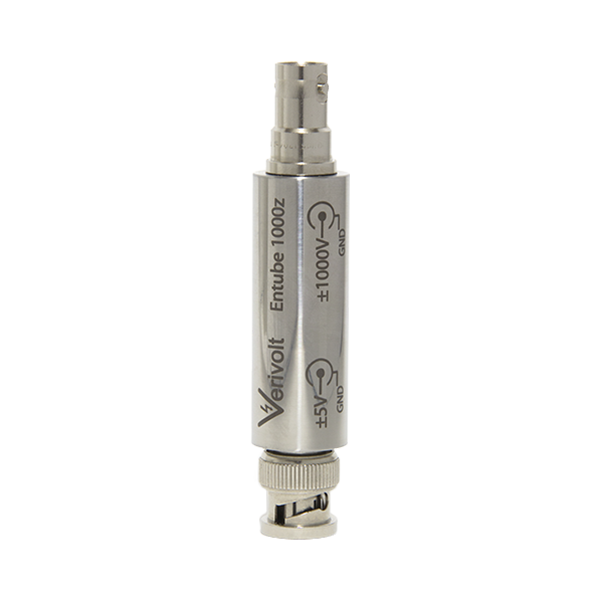

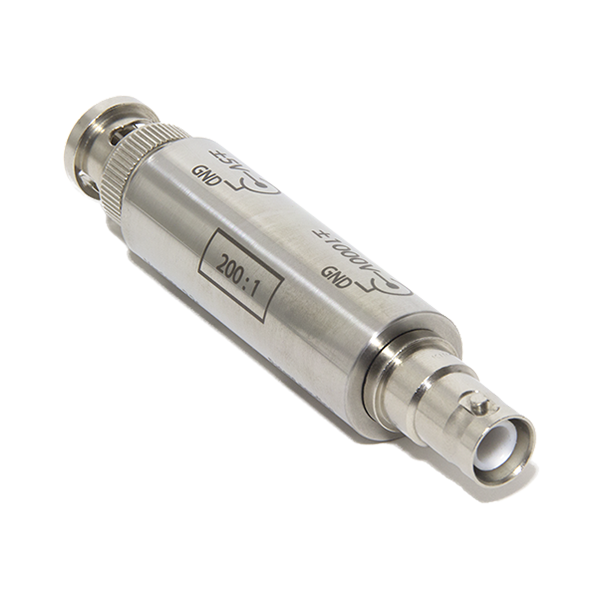

Entube Z

High-bandwidth Voltage Divider
Features
  • Icon ±200mv, ±1v Or ±2v Signal Output For Best Connectivity
  • Icon Bnc Or Shv Signal In
  • Icon Bnc Signal Out
  • Icon Compact Construction
  • Icon Dc - 50mhz Bandwidth
  • Icon Drop In Replacement To Other Voltage Dividers
  • Icon Simple Setup
  • Icon Up To 5kv Sensors
https://www.verivolt.com/web/image/product.template/326/image_1920?unique=995a49e
Need help choosing the right option?
Icon Connect with our sales engineer
Select options
  • Input Voltage
  • Output Voltage
Part Number
TNPV1200YRTR
Availability

In Stock

420.00 420.00 420.0 USD

420.00

This combination does not exist.

Add to Cart shop

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Details

Details

Documentation

Details

transducer


The Entube-Z is a high bandwidth voltage transducer designed for single ended measurements in a very compact form factor, and without need for power supplies. This series covers the ranges from ±50V to ±5kV with up to 50MHz bandwidth and 0.5% of signal accuracy.

Entube


The Entube-Z generates a ±200mV, ±1V or ±2V scaled down version of its input signal, which can then be processed by most computer based measurement platforms. Its compact form factor allows for very high channel densities, while delivering high performance for a low cost.

Measurements

Designed for Single Ended Measurements

The Entube Z sensor family operates as a single ended voltage divider that outputs a ±200mV or ±1V output signal, which can be processed by a computer-based measurement platform.

Ultra

Ultra Compact

Due to its compact size and shape, the Entube Z sensor family can be easily mounted anywhere between the signal source and the data acquisition system. The versions up to 5kV may even be used inline with the cable and not require any mounting at all. All can be secured to fixtures using cable ties.

Products

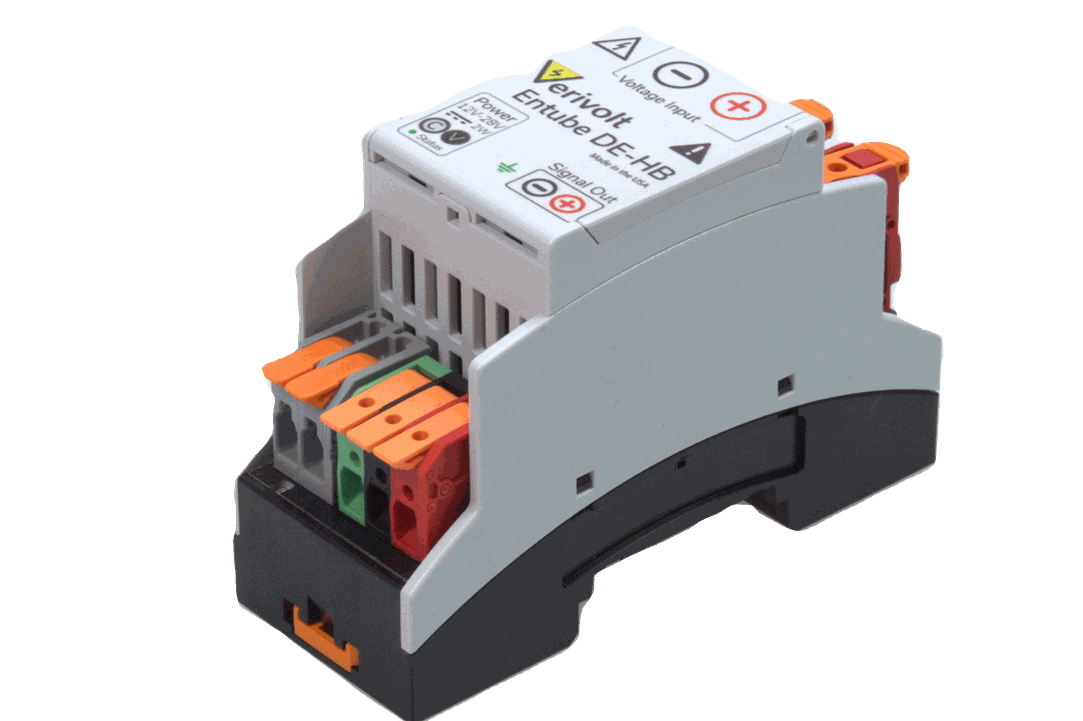

Alternative Products
