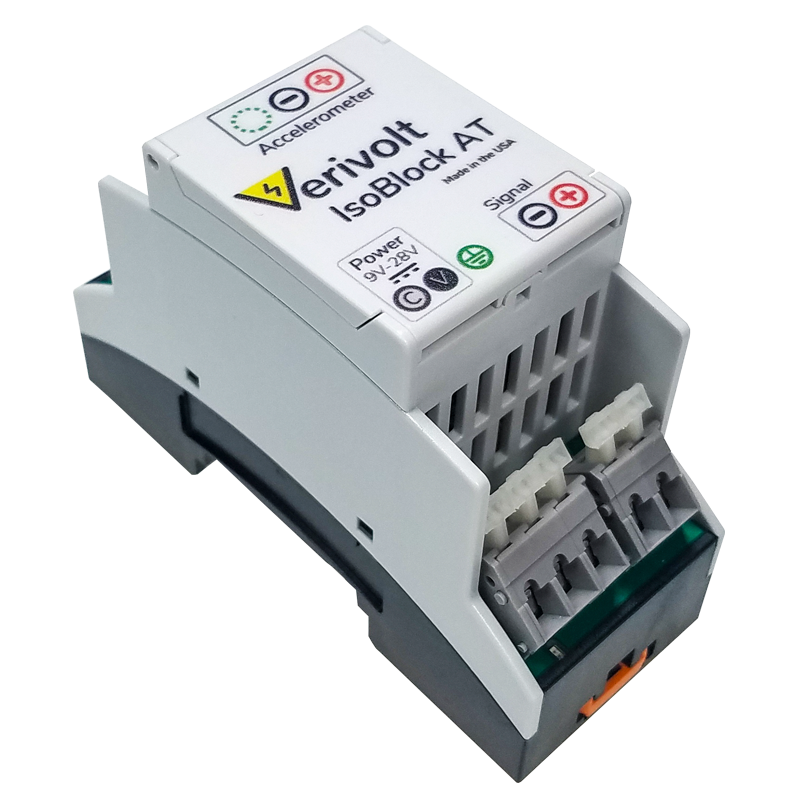

IsoBlock AT

Accelerometer Isolator
  • Powering and measuring of standard accelerometers

  • 3 Way Galvanic isolation

  • 1,200V sustained and 5,000V peak isolation

  • 1Hz to 100kHz Bandwidth

  • Simple setup

  • Drop in accelerometer powering and isolation to any DAQ

  • DIN rail fixturing for fast setup

Price and options

300.00 300.00 300.0 USD

300.00

    This combination does not exist.

    Add to Cart


    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    Three-Way Isolation

    The IsoBlock V modules provide a three way galvanic isolation:

    • Channel to Channel
    • Primary to Secondary
    • Signal to Power

    This galvanic barrier prevents unwanted currents from flowing along the circuit and adds a level of protection as well as allows to operate grounds with different potentials.

    100% Electronic Technology

    The use of advanced analog design and advanced materials makes devices more compact, reliable and cost effective

    Our designs reduce the footprint and impact in the environment as more friendly materials are used.

    High-Common Mode Rejection

    Write one or two paragraphs describing your product or services. To be successful your content needs to be useful to your readers.

    Start with the customer – find out what they want and give it to them.

    Surge Protection

    The IsoBlock V devices are designed to survive and protect other equipment against harmful voltage surges. These depend on the duration but can go as high as 20x the rated measurement range for up to 5 microseconds.

    IIsoBlock V devices will cap the outputs to a maximum slighly higher than the output range, saturate and not go over range therefore protecting any connected DAQ.

    Optional Filtering

    Verivolt IsoBlock devices have a filtering stage that can be configured during manufacturing and serve as an anti-aliasing filter. This filter is a 3rd order filter and needs to be determined during the ordering.
