IsoBlock I-FG-4c
In Stock- DC to 50kHz Bandwidth (up to 300kHz optional)
- Simple setup
- Drop in Voltage Sensing to channel isolation to any DAQ
- DIN rail fixturing for fast setup

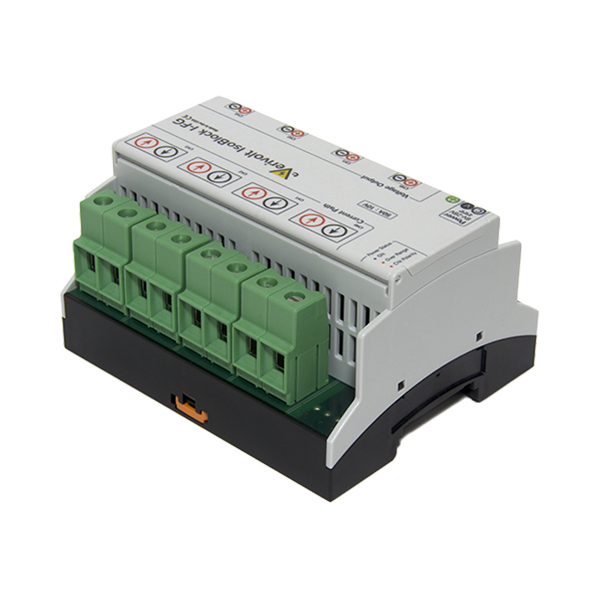

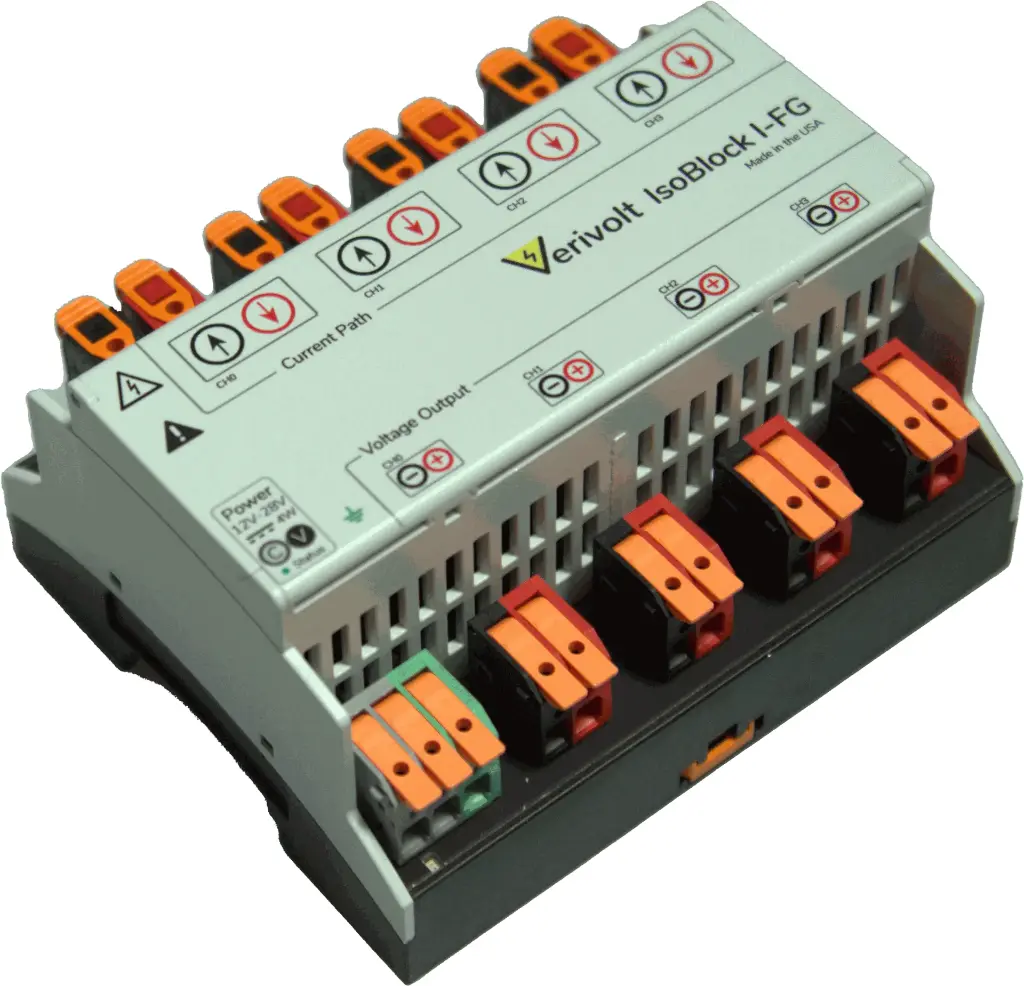

The IsoBlock I-FG-4C is a four channel (SC) module designed for high-quality isolated current measurements in the range from 6 to 50 Amperes. The module provides 1200V primary-to-secondary isolation, which allows users to monitor a miscellaneous of currents at different potentials.
Compact Form Factor
The compact form factor of the IsoBlock Current-FG module allows users to setup high channel density monitoring systems, making it ideal for deployed and portable systems. Moreover, the IsoBlock Current module is designed to mount on standard NS-35 or NS-32 DIN rails with minimal preparation, providing users ease of use and flexibility.
