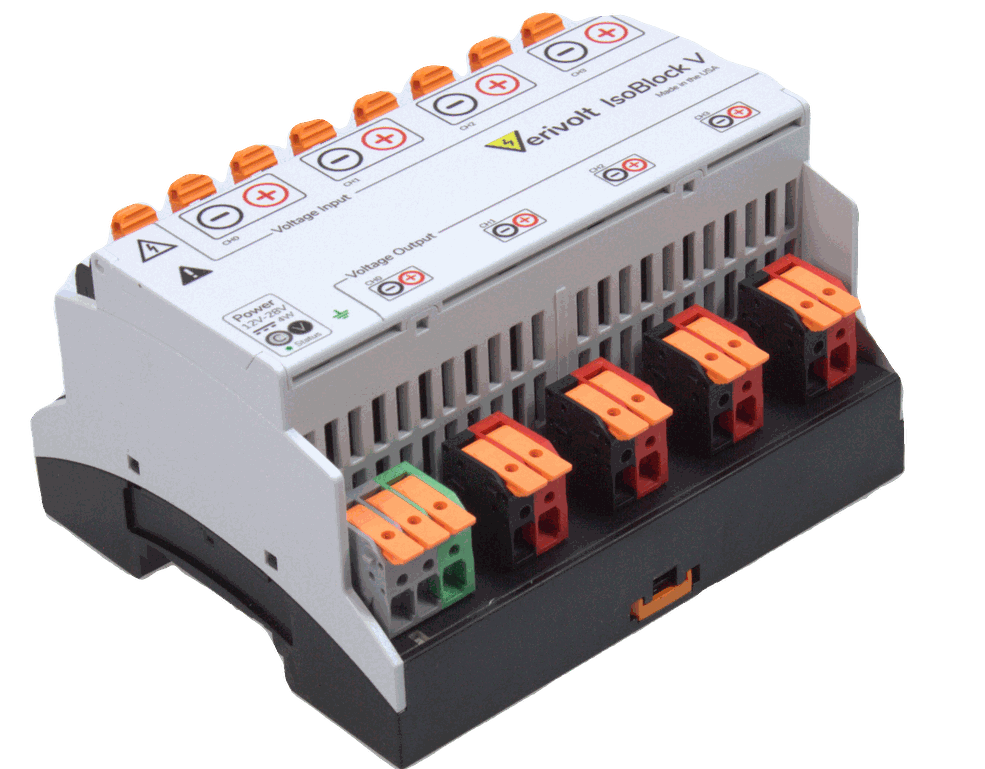

IsoBlock V-4c
In Stock- 3 Way Galvanic isolation
- 1,500V sustained and 5,000V peak isolation (1 min)
- DC to 100kHz Bandwidth
- Simple setup
- Drop in Voltage Sensing to channel isolation to any DAQ
- DIN rail fixturing for fast setup
The IsoBlock V module has been designed to provide high-quality isolated differential voltage measurements for applications requiring scaling of high voltages, as well as superior isolation.
Each IsoBlock V unit hosts four separate isolated channels, each of which can be connected to separate measurement sources while providing a range of functional coverage up to 1500V. The input of each specific IsoBlock V channel has its own isolated reference, and can be configured to suit user needs. All processed signals output from the IsoBlock V unit are referenced in respect to the ground channel of the user’s data acquisition system.
Verivolt designs its IsoBlock V modules with consideration for user great flexibility, high channel-density and low power consumption.
Three way Isolation
The IsoBlock V modules provide a three way galvanic isolation:
- Channel to Channel
- Primary to Secondary
- Signal to Power
This galvanic barrier prevents unwanted currents from flowing along the circuit and adds a level of protection as well as allows to operate grounds with different potentials.
100% Electronic Technology
The use of advanced analog design and advanced materials makes devices more compact, reliable and cost effective. Our designs reduce the footprint and impact in the environment as more friendly materials are used.
High Input Impedance & Low Output Impedance
Verivolt IsoBlock V devices have a high input impedance to reduce the unwanted effects of adding a load to a source. Also, the high input impedance increases device safety. The output is low to enable run long wires between the sensor modules and Data Acquisition devices.
