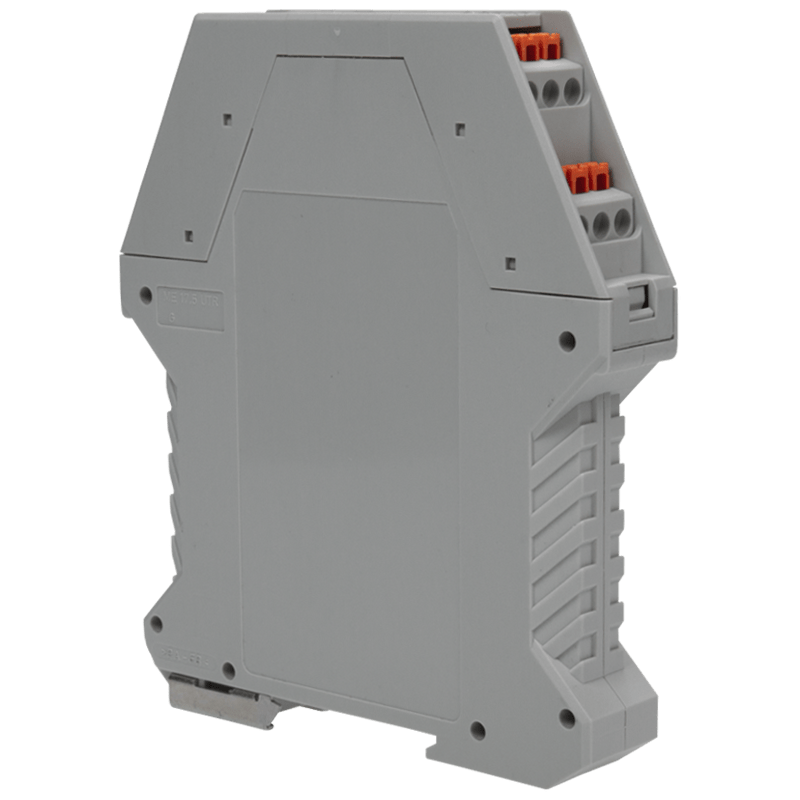

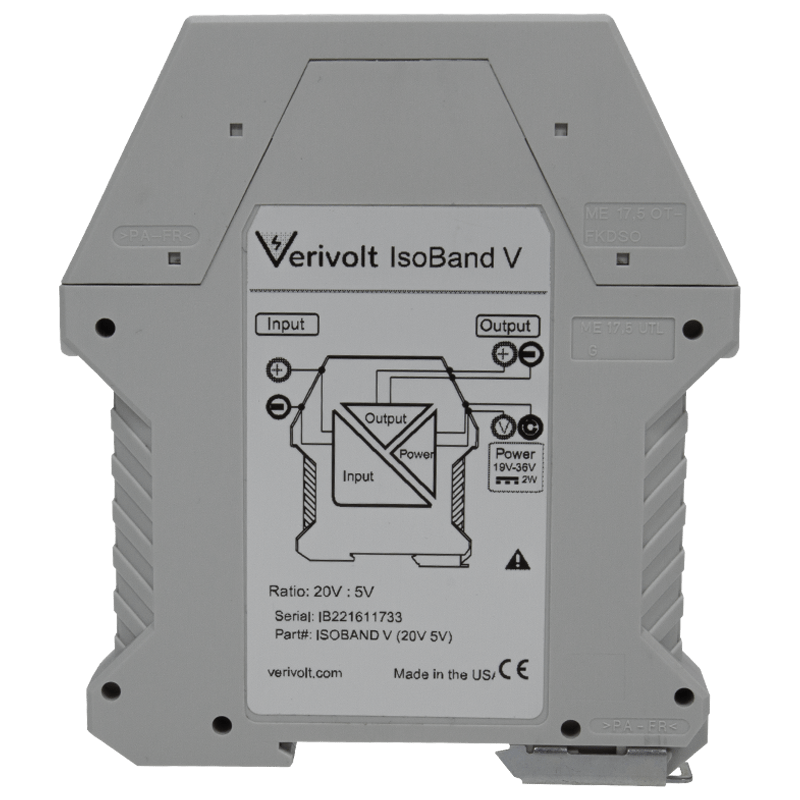

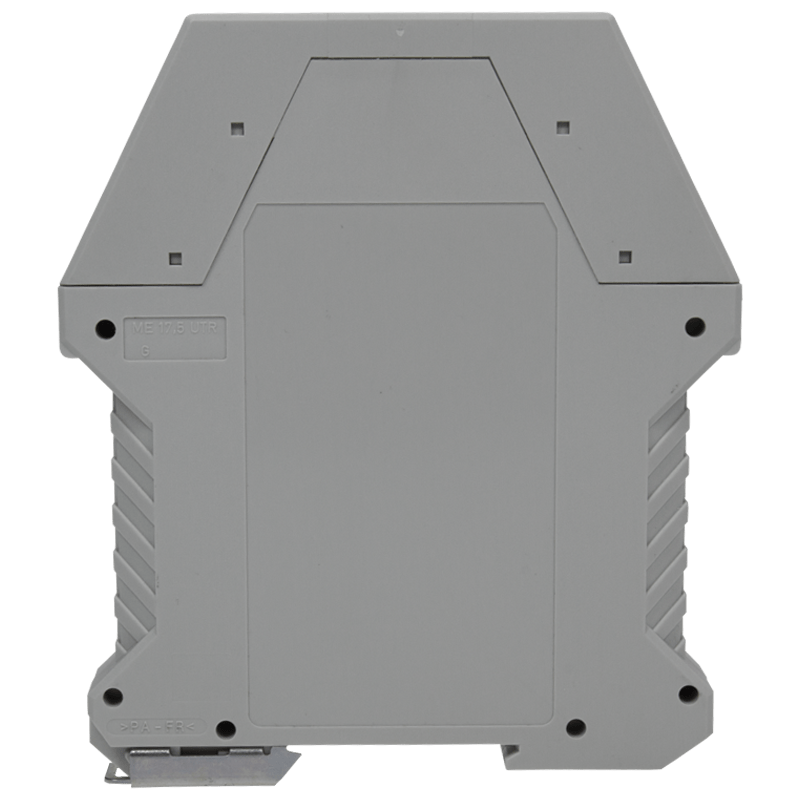

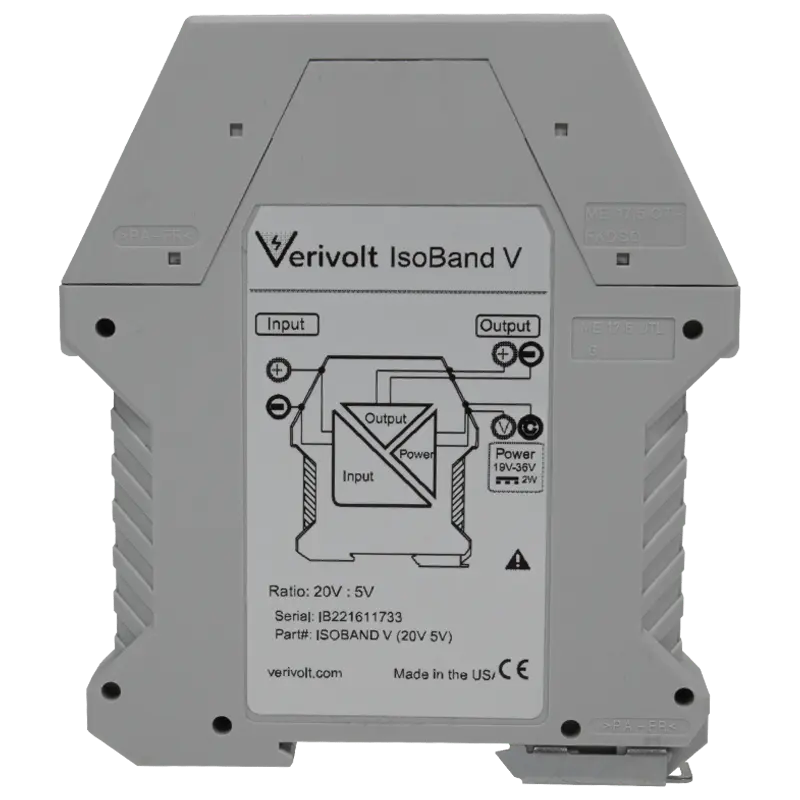

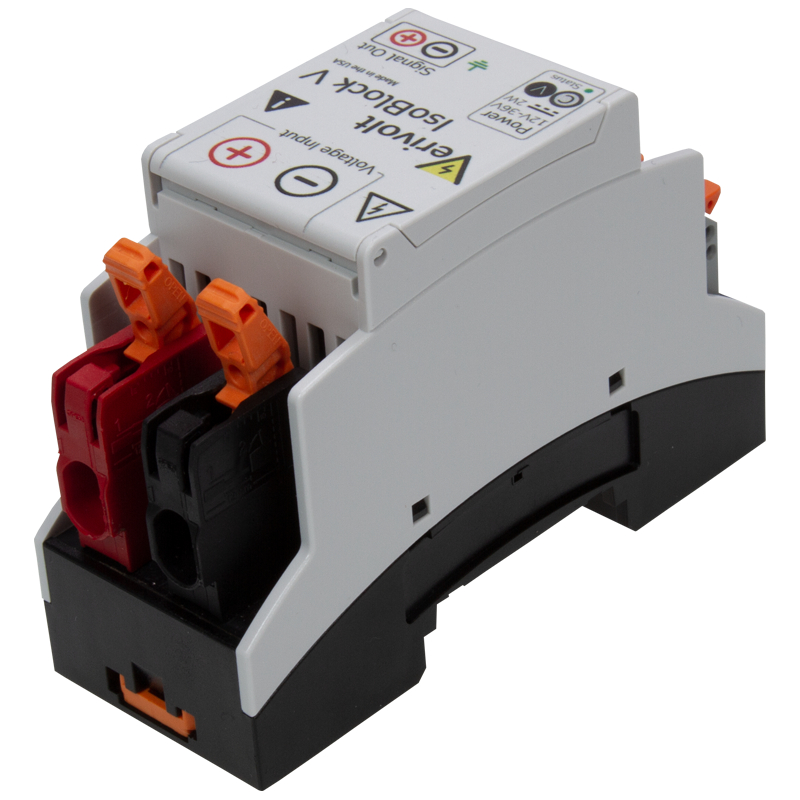

IsoBand V

In Stock
High Bandwidth Voltage Transducer with Galvanic Isolation

  • DC to 8MHz Bandwidth
  • 1,400V sustained and 5,000V for 1 min
  • Drop in Voltage Sensing to channel isolation to any DAQ
  • DIN rail fixturing for fast setup

https://www.verivolt.com/web/image/product.template/2231/image_1920?unique=e2889cb

Price and options

1,000.00 1,000.00 1000.0 USD

1,000.00

  • Input Voltage
  • Output Voltage
Availability up to 399

This combination does not exist.

Add to Cart


Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

The IsoBand V brings forth a unique combination of high-isolation, high voltage measurement and high-bandwidth, making it a perfect choice in the industry for measuring fast transients, PWM switching, high-frequency signals, VFDs, surge volt​ages, sharp transitions, and more.

While keeping a bandwidth that spans from DC to 8MHz. It covers a large set of possible input ranges, from ±5V to ±2000V, which are isolated and linearly scaled to a standard ±10V output signal.



Verivolt image and text block

Three-Way Isolation

The IsoBand V modules provide a three-way galvanic isolation:

  • Channel to Channel

  • Primary to Secondary

  • Signal to Power

This galvanic barrier prevents unwanted currents from flowing along the circuit and adds a level of protection as well as allows to operate grounds with different potentials.

Compact Form Factor

The compact form factor of the IsoBlock I-ZF module set allows users to setup high channel density monitoring systems, making it ideal for high performance compact systems.

Flux Gate Methodology

The IsoBlock I-FG-4C uses Flux-Gate methodology to measure the current flowing through the input conductor. This technique works by placing a toroid with a high number of turns (secondary) around the input current path (primary), while a close-loop circuitry controls the current through the secondary to null out the magnetic field inside the toroid. The input current is then obtained by multiplying the current from the control circuitry by the number of turns of the secondary. This is followed by an anti-aliasing filter and a conditioning stage to output a ±5V signal.

Proprietary Digital Technology

 The use of advanced analog to digital design unleashes the power of high bandwidth ADCs to deliver a signal conditioning device. This approach allows for the highest bandwidth on an isolated voltage transducer in the market.

Verivolt text and image block
Verivolt image and text block

High Input Impedance & Low Output Impedance

Verivolt's IsoBand V devices have a high input impedance that allows connecting them to most signal sources without a measurable impact. Also, the high input impedance increases device safety. The low output impedance makes it possible to connect to most digitizers and scopes as well as to run long wires.

High-Common Mode Rejection

 The smart design of the isolation barrier is able to remove most common mode present in at the input. As a result, you get a cleaner output regardless of unwanted ground shifts or even AC components present at the input as common mode.

Verivolt text and image block
Verivolt image and text block

Surge Protection

The IsoBand V devices are designed to survive and protect other equipment against harmful voltage surges. These depend on the duration but can go as high as 20x the rated measurement range for up to 5 microseconds.

IsoBand V devices will cap the outputs to a maximum slightly higher than the output range, saturate and not go over range therefore protecting any connected Digitizer or Scope.

Verivolt image and text block

Flat Frequency Response

The smart design and advanced materials help signals preserve their characteristics over a wide frequency range. As a result, the frequency response is very flat and the roll-off happens in a controlled way with the help of a 3rd order low pass filter.

High Linearity

The high linearity of the IsoBlock V makes possible to measure over a very wide amplitude range while preserving the nominal ratio. This high linearity associated to great stability and low offset ultimately translates as high accuracy measurements.
