IsoBand V

Transducteur de tension à large bande passante avec isolation galvanique
Features
  • Icon 1,400v Sustained And 5,000v For 1 Min
  • Icon Dc To 8mhz Bandwidth
  • Icon Din Rail Fixturing For Fast Setup
  • Icon Drop In Voltage Sensing To Channel Isolation To Any Daq
https://www.verivolt.com/web/image/product.template/2231/image_1920?unique=995a49e
Need help choosing the right option?
Icon Connect with our sales engineer
Select options
  • Tension d'entrée
  • Tension de sortie
Part Number
TNPV1200YRTR
Availability

In Stock

1 000,00 1 000,00 1000.0 USD

1 000,00

Cette combinaison n'existe pas.

Add to Cart shop

Conditions générales
Garantie satisfait ou remboursé de 30 jours
Expédition : 2-3 jours ouvrables

Details

Details

Details

VFDs

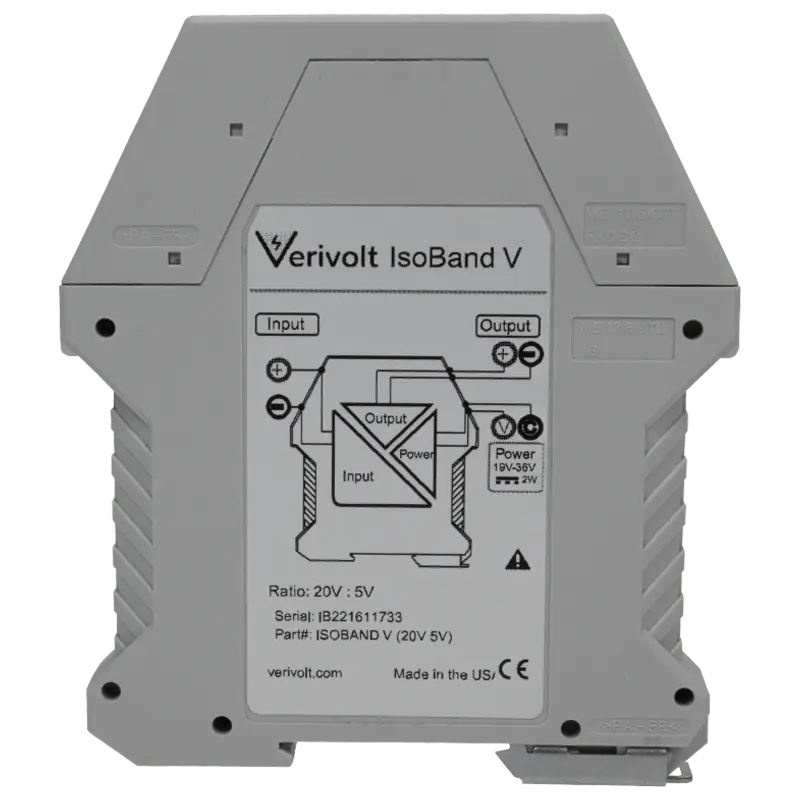

The IsoBand V brings forth a unique combination of high-isolation, high voltage measurement and high-bandwidth, making it a perfect choice in the industry for measuring fast transients, PWM switching, high-frequency signals, VFDs, surge volt​ages, sharp transitions, and more.

isolated


While keeping a bandwidth that spans from DC to 8MHz. It covers a large set of possible input ranges, from ±5V to ±2000V, which are isolated and linearly scaled to a standard ±10V output signal.

Isolation

Three way Isolation

The IsoBand V modules provide a three-way galvanic isolation:

    Channel to Channel
    Primary to Secondary
    Signal to Power

This galvanic barrier prevents unwanted currents from flowing along the circuit and adds a level of protection as well as allows to operate grounds with different potentials.

IsoBlock

Compact Form Factor

The compact form factor of the IsoBlock I-ZF module set allows users to setup high channel density monitoring systems, making it ideal for high performance compact systems.

Impedance

High Input Impedance & Low Output Impedance

Verivolt's IsoBand V devices have a high input impedance that allows connecting them to most signal sources without a measurable impact. Also, the high input impedance increases device safety. The low output impedance makes it possible to connect to most digitizers and scopes as well as to run long wires.

Digital

Proprietary Digital Technology

The use of advanced analog to digital design unleashes the power of high bandwidth ADCs to deliver a signal conditioning device. This approach allows for the highest bandwidth on an isolated voltage transducer in the market.

components

High-Common Mode Rejection

The smart design of the isolation barrier is able to remove most common mode present in at the input. As a result, you get a cleaner output regardless of unwanted ground shifts or even AC components present at the input as common mode.

IsoBand

Surge Protection

The IsoBand V devices are designed to survive and protect other equipment against harmful voltage surges. These depend on the duration but can go as high as 20x the rated measurement range for up to 5 microseconds.

IsoBand V devices will cap the outputs to a maximum slightly higher than the output range, saturate and not go over range therefore protecting any connected Digitizer or Scope.

Frequency

Flat Frequency Response

The smart design and advanced materials help signals preserve their characteristics over a wide frequency range. As a result, the frequency response is very flat and the roll-off happens in a controlled way with the help of a 3rd order low pass filter.

amplitude

High Linearity

The high linearity of the IsoBlock V makes possible to measure over a very wide amplitude range while preserving the nominal ratio. This high linearity associated to great stability and low offset ultimately translates as high accuracy measurements.
