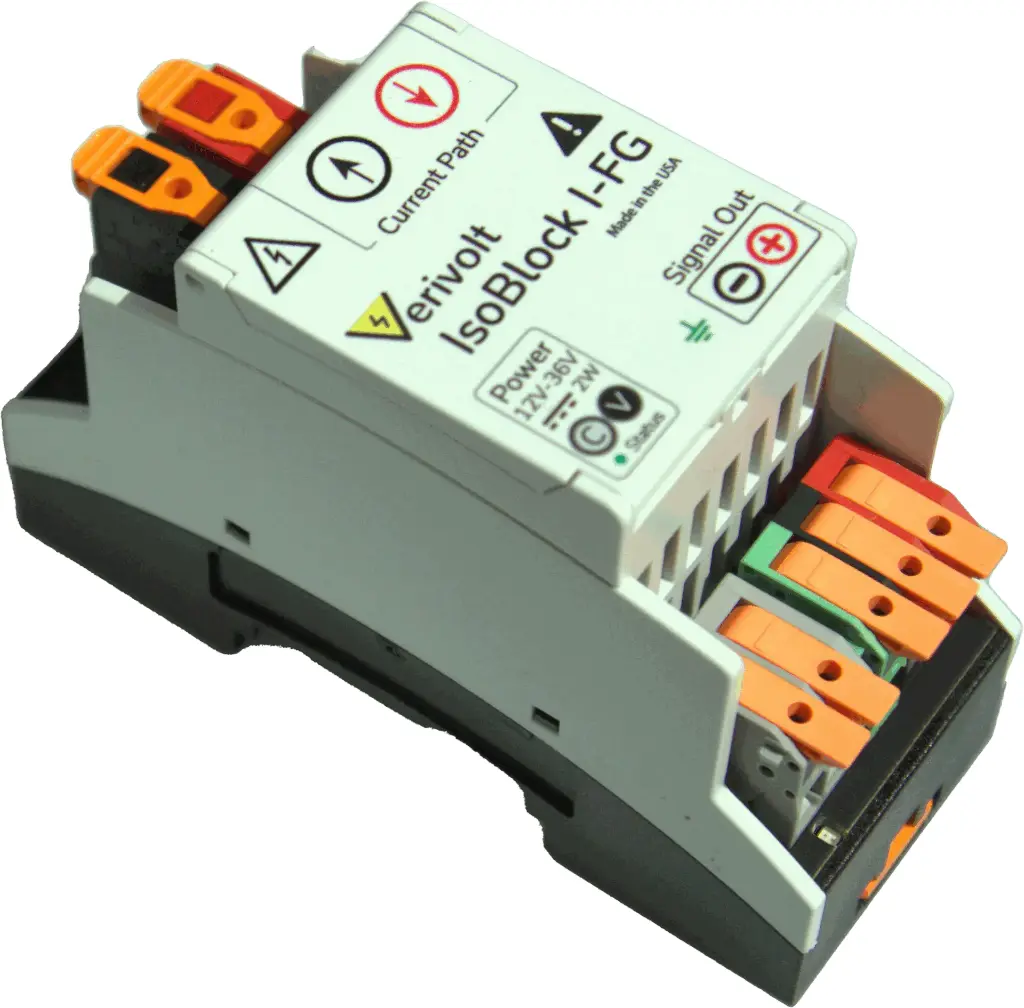

IsoBlock I-FG-1c
In Stock- DC à 50kHz Largeur de bande
- Une configuration simple
- Détection de la chute de tension pour l'isolation du canal vers n'importe quel DAQ
- Fixation sur rail DIN pour une installation rapide

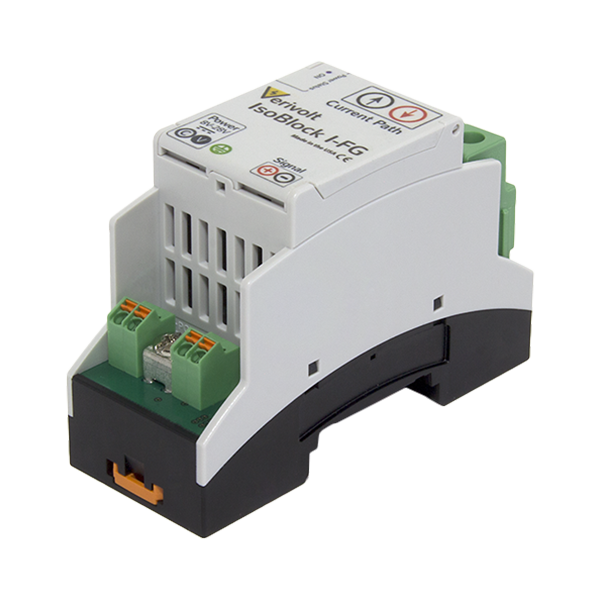

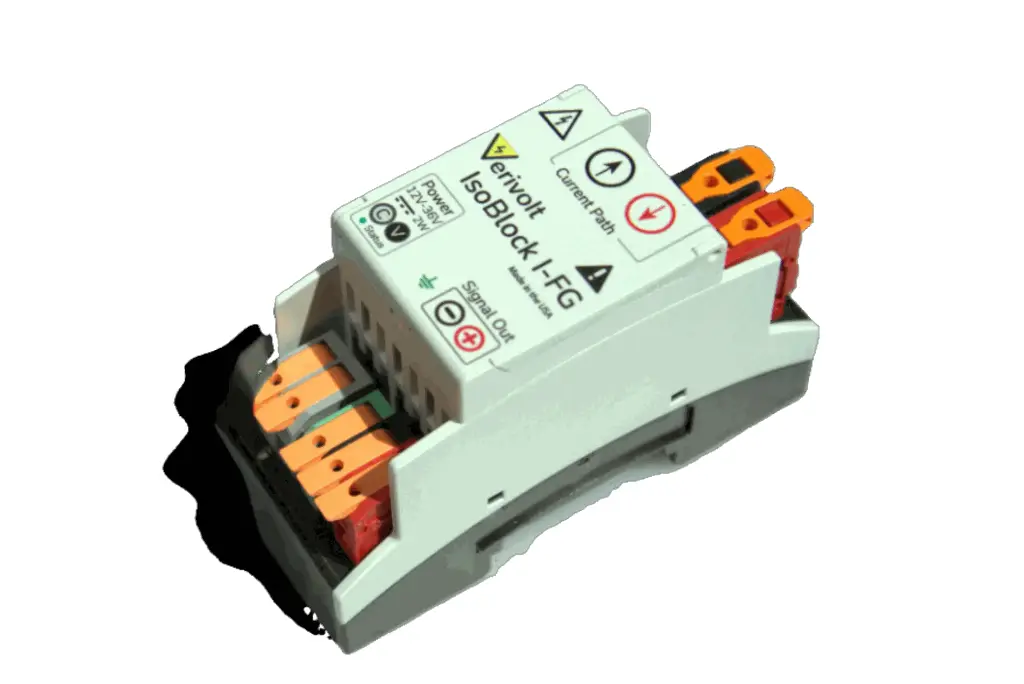

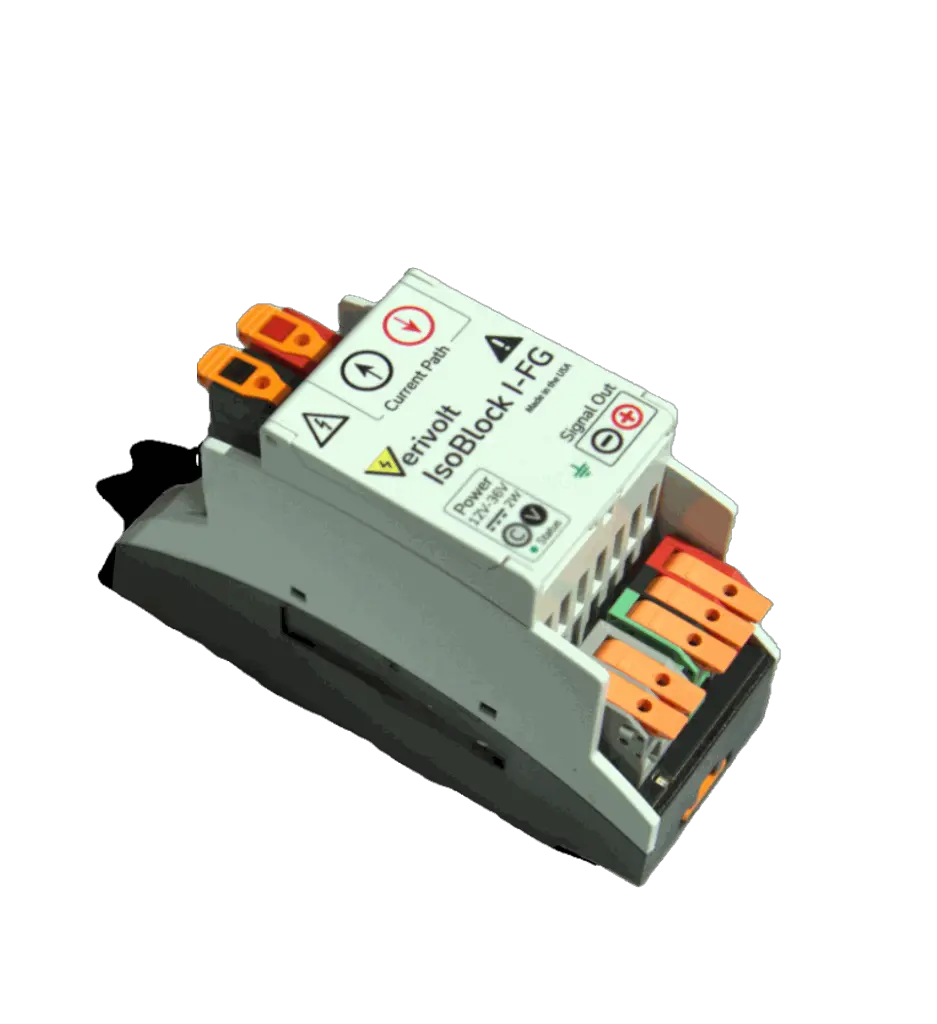

The IsoBlock Current-FG is a sensor designed for high-quality isolated current measurements for applications up to 50 Amperes. The IsoBlock Current-FG module provides 1200V primary-to-secondary isolation, which allows users to monitor a miscellaneous of currents at different potentials. The module comes with an anti-aliasing filter and a conditioning stage to output a ±10V signal.
Compact Form Factor
The compact form factor of the IsoBlock Current-FG module allows users to setup high channel density monitoring systems, making it ideal for deployed and portable systems.
