IsoBlock I-ZF

Zero Flux High Performance Current Sensor
Features
  • Icon 1,500v Sustained And 5,000v Peak Isolation
  • Icon 3 Way Galvanic Isolation
  • Icon Dc To 100khz Bandwidth
  • Icon Din Rail Fixturing For Fast Setup
  • Icon Drop In Current Sensing To Any Daq
  • Icon Simple Setup
  • Icon Ultra High Performance With 0.1 And 0.02% Accuracy.
  • Icon Unipolar Power Supply
https://www.verivolt.com/web/image/product.template/714/image_1920?unique=cc41324
Need help choosing the right option?
Icon Contact our sales engineers
Select options
  • Input Current
  • Output Voltage
  • Accuracy
Part Number :
TNPV1200YRTR
Availability :
Log In to view Availability

400.00 550.00 400.0 USD

400.00

This combination does not exist.

Add to Cart shop

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

IsoBlock

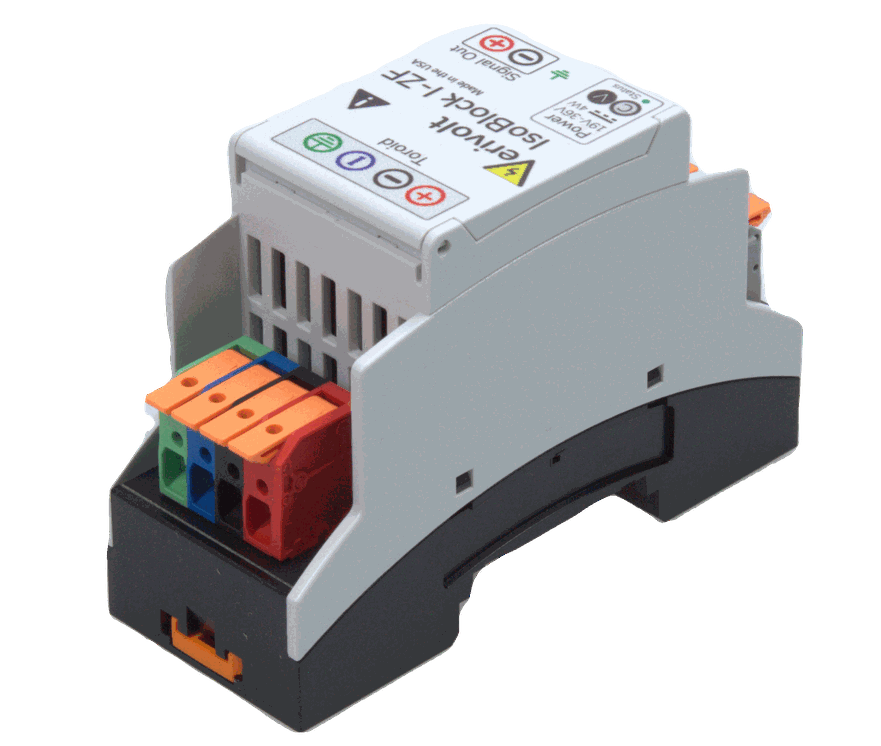

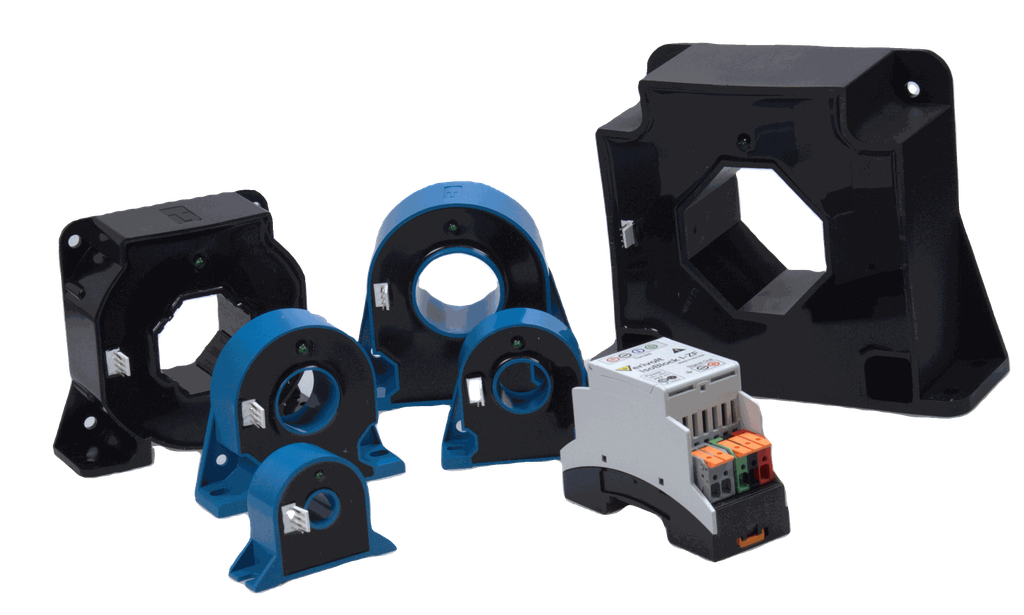

The IsoBlock I-ZF is a sensor designed for high-performance current measurements with ranges from 10A to 2000 Amperes. The IsoBlock I-ZF consists of 2 parts, a toroid and a DIN rail mounted conditioning unit. As all devices from the IsoBlock family it has an anti-aliasing filter and a conditioning stage to output a ±10V signal. The sensing unit uses Hall Effect with closed loop methodology to measure the current flowing in the conductor passing through the aperture. This is followed by translation, corrections, scaling and anti-aliasing filter in the conditioning unit.

Galvanic

Three-Way Galvanic Isolation

The IsoBlock I-ZF is a non-contact sensor that inherently provides primary-to-secondary isolation, which allows users to monitor a miscellaneous of currents at different potentials.

monitoring

Compact Form Factor

The compact form factor of the IsoBlock I-ZF module set allows users to setup high channel density monitoring systems, making it ideal for high performance compact systems.
