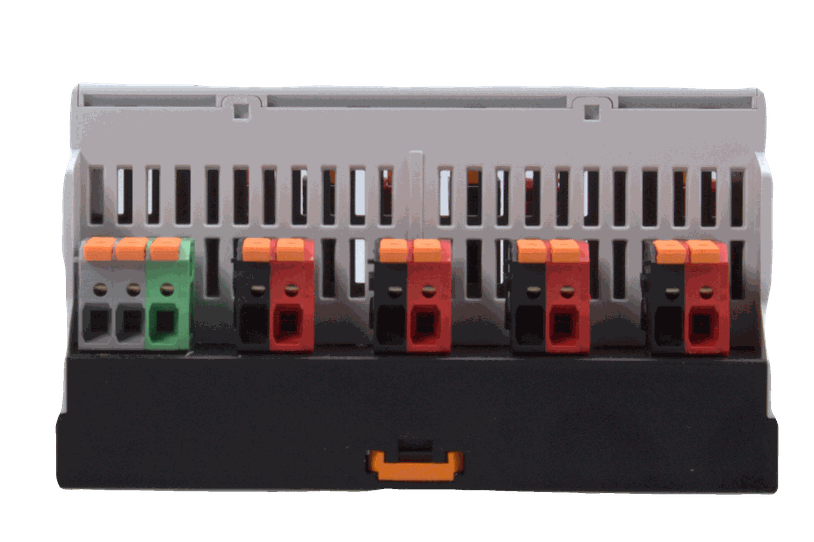

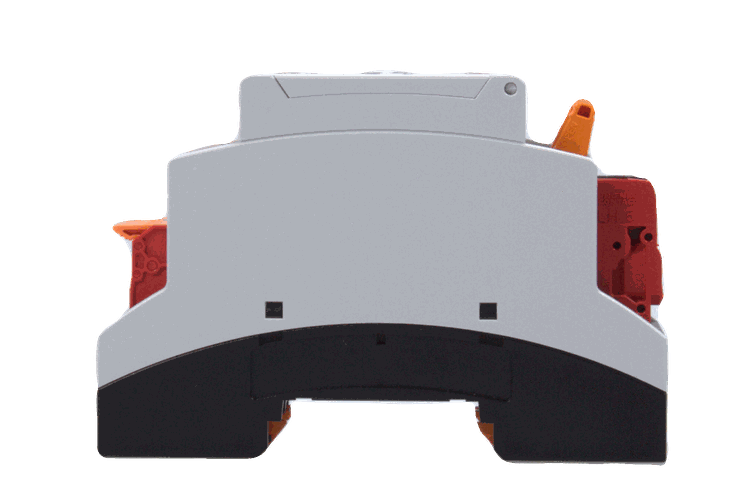

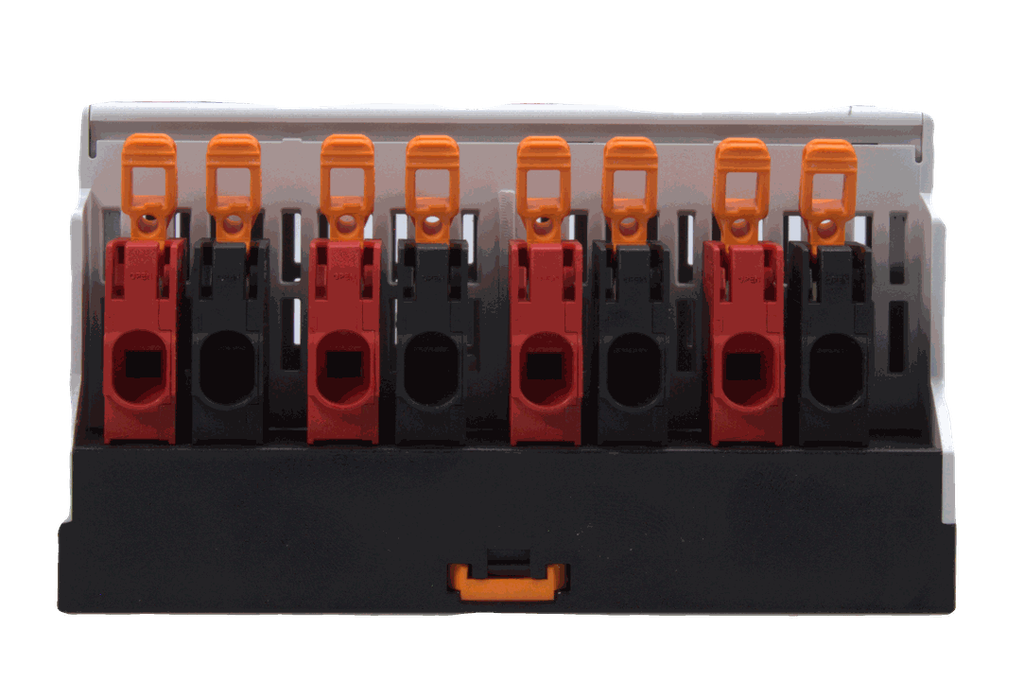

IsoBlock V-4c

Voltage Sensor Module with Galvanic Isolation
Features
  • Icon 1,500v Sustained And 5,000v Peak Isolation (1 Min)
  • Icon 3 Way Galvanic Isolation
  • Icon Dc To 100khz Bandwidth
  • Icon Din Rail Fixturing For Fast Setup
  • Icon Drop In Voltage Sensing To Channel Isolation To Any Daq
  • Icon Simple Setup
https://www.verivolt.com/web/image/product.template/308/image_1920?unique=995a49e
Need help choosing the right option?
Icon Connect with our sales engineer
Select options
  • Input Voltage
  • Output Voltage
  • Accuracy
  • Bandwidth
Part Number
TNPV1200YRTR
Availability

In Stock

900.00 1,600.00 900.0 USD

900.00

This combination does not exist.

Add to Cart shop

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Details

Details

Details

voltage


The IsoBlock V module has been designed to provide high-quality isolated differential voltage measurements for applications requiring scaling of high voltages, as well as superior isolation.

isolated


Each IsoBlock V unit hosts four separate isolated channels, each of which can be connected to separate measurement sources while providing a range of functional coverage up to 1500V. The input of each specific IsoBlock V channel has its own isolated reference and can be configured to suit user needs. All processed signals output from the IsoBlock V unit are referenced in respect to the ground channel of the user’s data acquisition system.

consumption


Verivolt designs its IsoBlock V modules with consideration for user great flexibility, high channel-density and low power consumption.

Isolation

Three-way Galvanic Isolation

The IsoBlock V-4c modules provide a three-way galvanic isolation:

    Channel to Channel
    Primary to Secondary
    Signal to Power

This galvanic barrier prevents unwanted currents from flowing along the circuit and adds a level of protection as well as allows to operate grounds with different potentials.

100% Electronic Technology

The use of advanced analog design and advanced materials makes devices more compact, reliable and cost effective. Our designs reduce the footprint and impact in the environment as more friendly materials are used.

IsoBlock

High Input Impedance & Low Output Impedance

Verivolt's IsoBlock V-4c devices have a high input impedance to reduce the unwanted effects of adding a load to a source. Also, the high input impedance increases device safety. The output is low to enable run long wires between the sensor modules and Data Acquisition devices.

Products

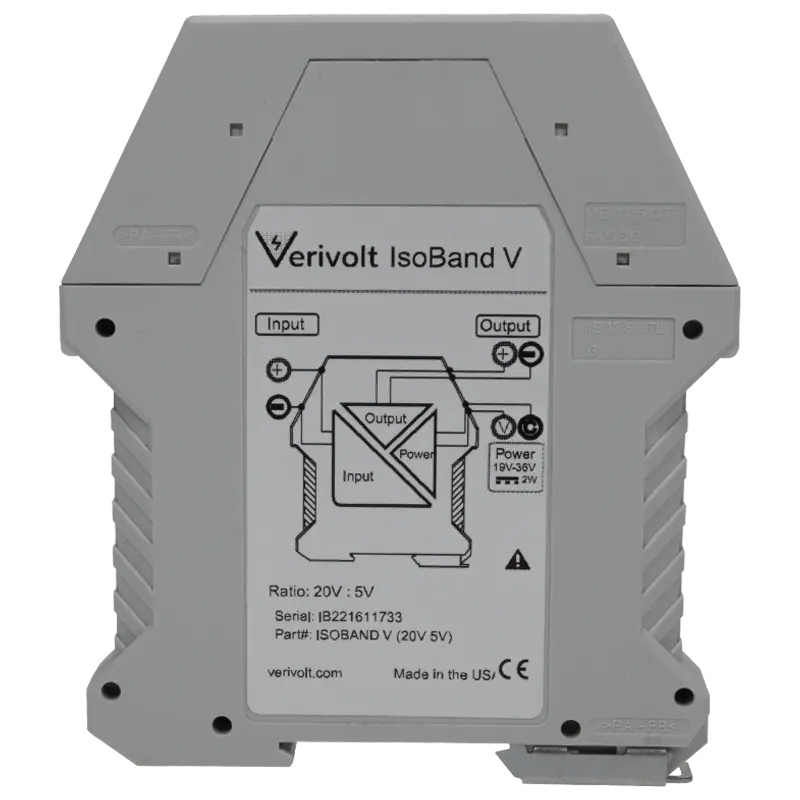

Alternative Products
