Verivolt's voltage and current sensors provide highly accurate, isolated, and stable measurements across an extended temperature range for solar applications. This makes them an ideal choice for monitoring solar farms or characterizing and validating new product platforms.

Solar String Monitoring

The Challenge:

Voltage and Current Monitoring in VFD Systems

Variable Frequency Drives (VFDs) are widely used across various industries to optimize motor performance, enhance energy efficiency, and improve process control. VFDs are commonly found in manufacturing, HVAC systems, water and wastewater treatment, oil and gas, among many others. These applications often involve demanding electrical and environmental conditions, including high currents and voltages required to power motors. Additionally, such environments may expose equipment to high ambient temperatures, electrical noise from switching elements, and mechanical vibrations. Monitoring voltage and current in VFD applications is critical for performance verification, troubleshooting, and preventive maintenance.

Most modern VFDs have embedded sensors that measure current and voltage internally. These internal measurements are primarily used for control logic, protection mechanisms, and sometimes diagnostics. However, there are several good reasons to use independent current and voltage sensors to monitor the motor or load, even if the VFD already has built-in sensing, such as:

Accuracy and Signal Quality

VFD sensors are often optimized for control, not high-resolution or high-accuracy monitoring. External sensors can:

• Offer higher accuracy
• Be calibrated independently
• Provide better linearity and frequency response
• Output analog signals suitable for external data acquisition systems (DAQ, SCADA, etc.)

Accurate Power Measurement

To calculate true power (P = V × I × cosφ), you need both current and voltage measurements. Independent sensors allow real-time power and energy monitoring, including active power (Watts), reactive power (VARs), apparent power (VA) and power factor (cosφ) which are essential for:

• Energy efficiency audits
• Load profiling
• Cost allocation
• Diagnosing power quality issues

Advanced Analysis & Logging

VFDs may not provide raw waveform access (especially with high sampling rate), long-term logging and custom data formats or protocols for integration. Independent sensors allow for:

• Real-time waveform capture
• FFT-based harmonic analysis
• Custom integration with other automation or monitoring systems

Third-Party Compliance & Certification

Power quality standards or ISO audits may require certified external measurement tools. Independent sensors ensure traceable calibration and compliance with standards like:

• IEC 61000 (power quality)
• IEEE 519 (harmonics)
• ISO 50001 (energy management)

Retrofit & Test Bench Applications

For testing motors with different VFDs or changing loads, independent sensors:
• Avoid dependency on each VFD’s interface
• Enable standardized data acquisition across brands/models
• Provide portable, reusable instrumentation

How do Verivolt’s Sensors Address these Challenges?

Verivolt sensors used in this application field present the following characteristics.


Recommended Verivolt Sensors for VFD Application

Voltage Measurement

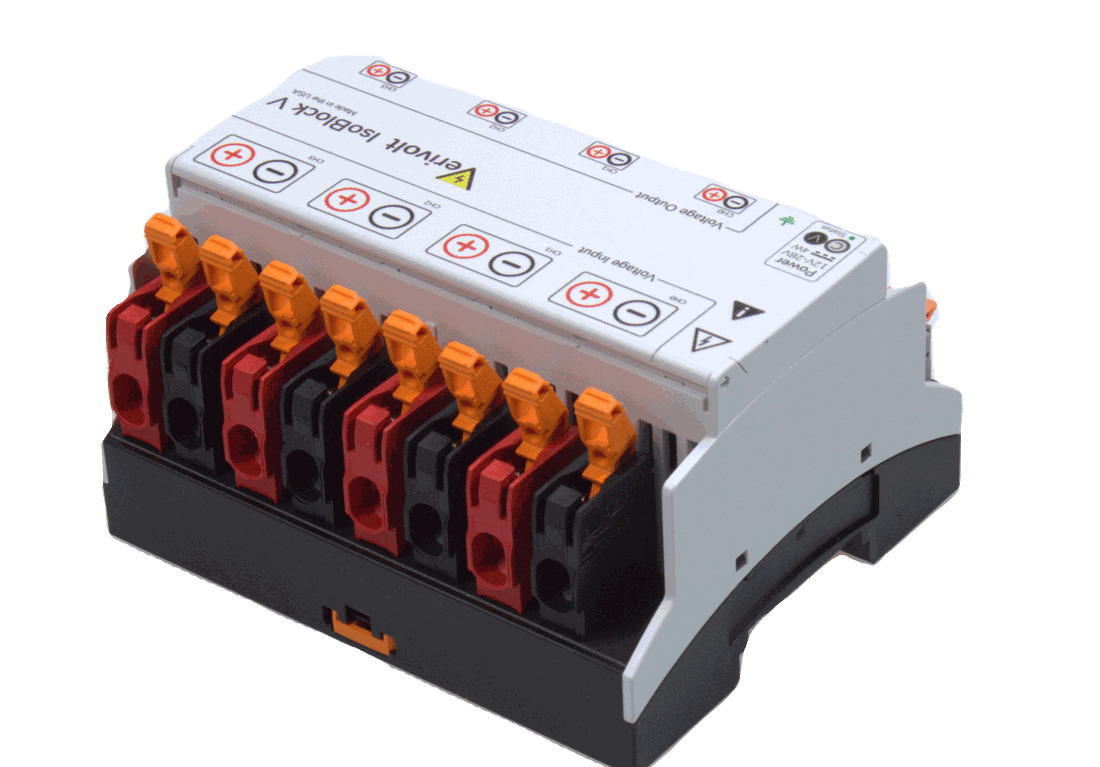

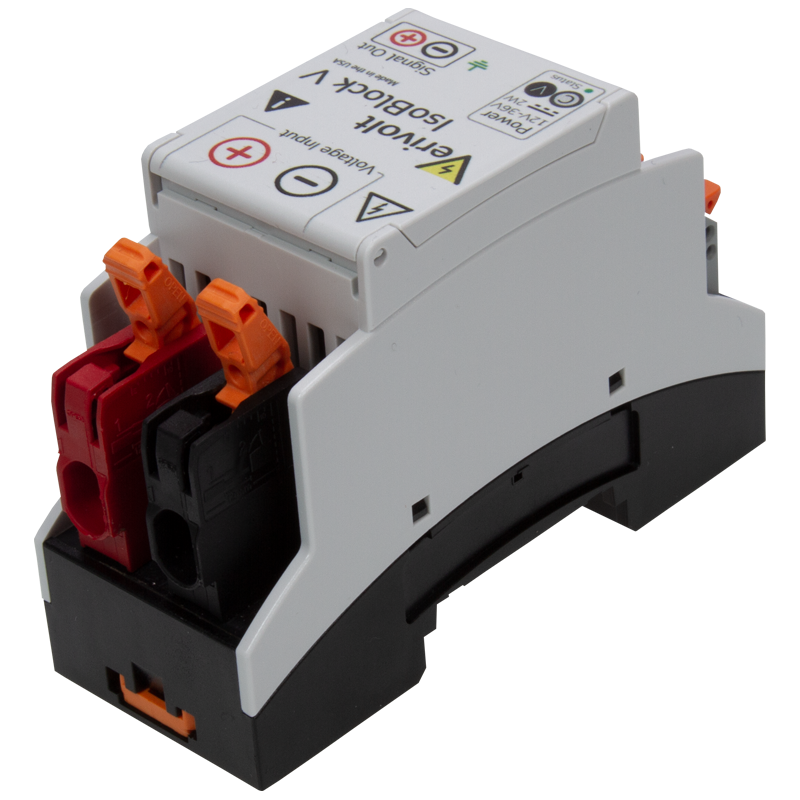

  • IsoBlock V-4C: (up to 300 KHz – custom) A 4-channel, differential-input, high-bandwidth isolated voltage suitable for capturing line-to-line voltages with ranges from 2V up to 1500V. The IsoBlock V-4C sensor is ideal to monitor the VFD output phases with up to 0.1% accuracy.


  • Isoband V (up to 8 MHz): This sensor offers a unique combination of high-isolation, high voltage measurement and high-bandwidth, making it a perfect choice for measuring fast transients, PWM switching and high-frequency signals with 0.2% accuracy.


Your application requires more than 8MHz bandwidth? Try our high-bandwidth, non isolated sensors:


  • Entube DE-HB (up to 20 MHz): A high bandwidth differential voltage sensor


  • Entube Z (up to 50 MHz): A compact, single ended voltage sensor with the highest bandwidth


Current Measurement

  • IsoBlock I-ZF: An isolated, contactless current sensor that uses a zero-flux technique for measurements with up to 0.01% accuracy. Ideal for monitoring both input and output currents and identifying overcurrent or load imbalance. Available from 50A to 2000A ranges.

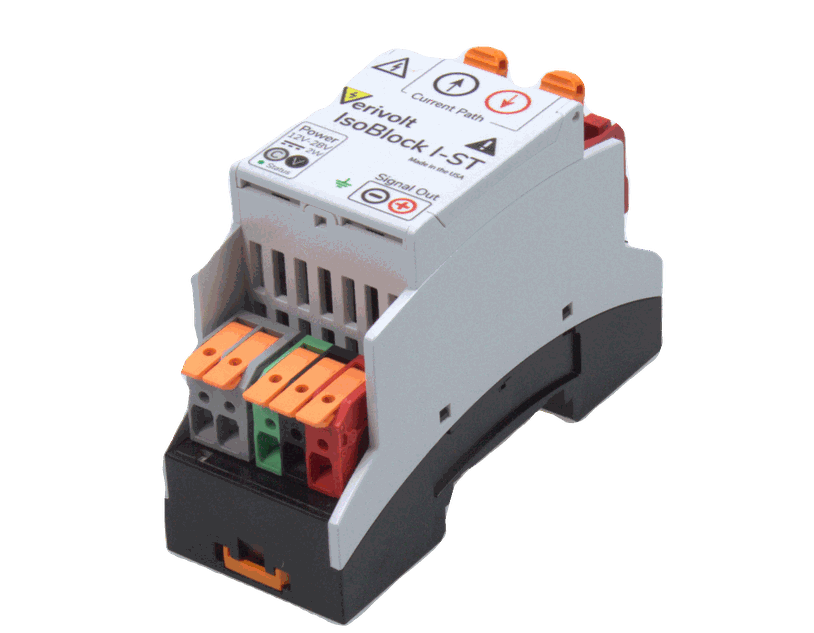

  • IsoBlock I-ST: Isolated shunt-based current sensor designed for low to mid range input. Enables simultaneous and isolated monitoring of all three motor phases to detect unbalances. Input ranges available from 100mA to 100A.

Conclusion

Verivolt delivers precision voltage and current sensing solutions tailored for the dynamic requirements of VFD systems. Our sensors provide the performance, accuracy, and isolation needed to ensure optimal motor monitoring. Visit our website to explore products designed to meet the evolving challenges of this industry.


Isolation, precision, and temperature stability for
Solar Monitoring

To optimize the productivity of a solar farm as well as continually improve development of solar panels and inverters, a precise understanding of their power output is crucial. This requires measuring current and voltage at strategic positions within the solar array so that monitoring systems can automatically detect any drops in voltage or current, which may indicate a productivity issue.

To ensure safety, it is imperative that these sensors have high isolation ratings and provide good accuracy. Additionally, since they can be exposed to significant temperature variations, it is essential for them to maintain stability across a wide temperature range

Sensors used throughout the entire Product Life Cycle - from R&D to Production

To address these challenges, Verivolt offers a diverse selection of sensors that cater to these requirements to varying degrees. This enables engineers and designers to choose from a wide range of specifications, ranging from cost-effective solutions suitable for large deployments to highly accurate devices tailored for precision measurements in research and development activities.

For cases that require highly specific solutions, Verivolt's research and development team is also available to assist with custom designs. With decades of experience in sensor technology, they are well-equipped to tackle challenging and unconventional applications.

Key Features

  • Galvanic Isolation
  • High accuracy
  • Stability over temperature range
