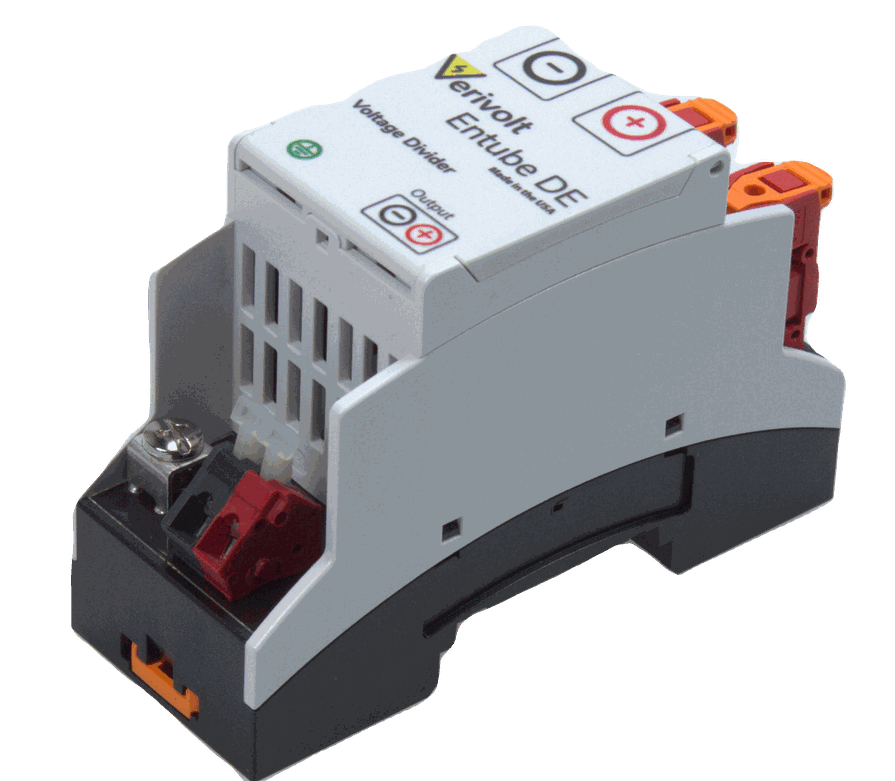

Entube DE

In Stock
Diviseur de tension différentielle

  • ±1500V input dynamic range on each terminal (line-to-line and line-to-ground)
  • ±5V or ±10V output dynamic range (differential plus common mode)
  • DC to 25kHz frequency spectrum of operation
  • Sensor works without the need for a power supply
  • 5000V withstanding surge voltage for 10 seconds
  • Designed for interfacing with differential input DAQs
  • Industrial grade casing, 100% electronic technology

https://www.verivolt.com/web/image/product.template/317/image_1920?unique=0f8a8aa

Prix et options

280,00 280,00 280.0 USD

280,00

  • Tension d'entrée
  • Tension de sortie
Disponibilité jusqu'à 9

Cette combinaison n'existe pas.

Ajouter au panier


Conditions générales
Garantie satisfait ou remboursé de 30 jours
Expédition : 2-3 jours ouvrables

The Entube-de series is a family of voltage transducers designed for high quality differential measurements in a very compact form factor, and without need for power supplies. This series covers the ranges of ±50V to ±1500V with up to 50kHz bandwidth and up to 0.2% of signal accuracy.

The module outputs all line-to-line and line-to-ground signal pairs. Delta or Wye measurements can be made depending on the input configuration of the digitizer being used (NRSE or Differential).


Differential Divider

The Entube-de sensor operates as a differential divider RC-network with an anti-aliasing filter on its output. It generates a ±5V or ±10V scaled down version of the difference between the two input voltages, which can then be processed by a computer-based measurement system.

Ultra-compact form factor

The Entube-de is part of Verivolt’s sensing platform, which is aimed at allowing users to laid out multiple distributed sensors with a minimum of cabling required and no power supplies. This platform together with the Entube-de ultra-compact form factor, allows for very high channel densities, while delivering high performance for a low cost.
